    150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR CES48150LFP
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance

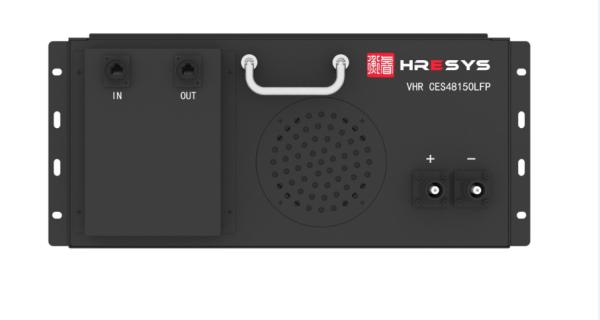

    48V 150Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 555.0 mm X H: 232.0mm


    • Features and Benefits​
    1. Long enough distance provided between module and BMS, where the most of the thermal generated
    2. Air exchange through well designed window-shades to ensure thermal balance inside of the battery case
    3. Air-flow channels are designed in length-wise direction, and also air-flow channel is designed in cross-wide direction
    4. It can communicate with the computer or host through CAN, upload and save the collected information
    5. The Product has the functions of cell and module voltage detection. The cell voltage detection accuracy is less than ± 15mV under normal temperature static conditions

    • Product Specification​
    ItemSpecificationRemarks
    Nominal Capacity150AhStandard discharge (1) capacity after standard charge (2)
    Nominal Voltage48.0VConfiguration: 15S1P - VHR 45173184LFP-150Ah. Voltage of single cell is 3.2V.
    Charge Voltage54.0V@ 25 ± 3℃
    Voltage at End of Discharge40V@ 25 ± 3℃
    Maximum Continuous Charge Current (CC Threshold)75A@ 25 ± 3℃
    Charge Voltage-cell3.80V/cellN.A.
    Maximum Continuous150A@ 25 ± 3℃
    Discharge Current
    Voltage at End of Discharge-cell2.50V/cellN.A.
    Operation AllowableCharge: 0~60°CN.A.
    Temperature RangeDischarge: -20~60°CN.A.
    Continuous Discharge Power3.6KW50%SOC
    Continuous Charge Power1.44KWN.A
    Self-discharge Rate/Month≤4%@ 25 ± 3℃,50%SOC
    Cycle Life(cycles)≥5000@ 25 ± 3℃,0.2C/0.5C @80%DOD
    Operation Allowable≤95% RHOperation
    Humidity Range≤85% RHStorage
    Recommended0~40°CMax. 6 month
    Storage temperature
    Weight64.5(±2)kgN.A.

    • Dimension
    Model No.Nominal VoltageNominal CapacityDimensionWeightTerminalRemarks
    (W X D X H, mm)MaterialType
    VHR CES48150LFP48V150AhWidth: 482.0mm (±2)64.5(±2)kgSteelM6/
    Depth: 555.0mm (±2)
    Height: 232.0mm (±2)

    150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance

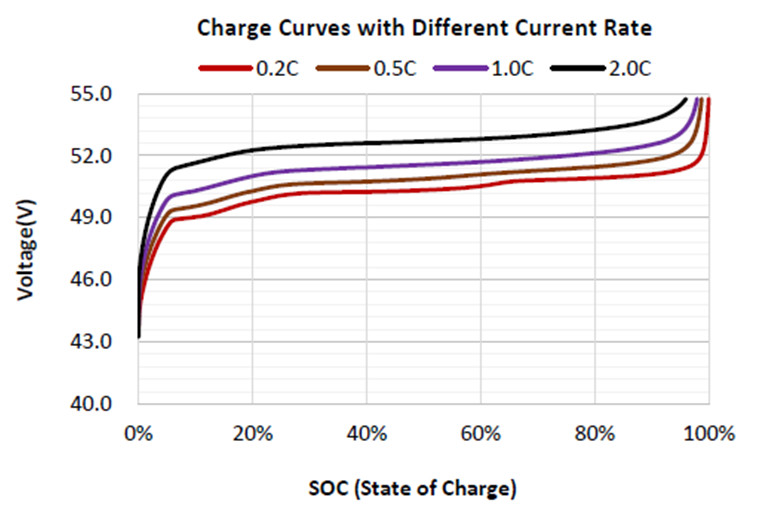

    • Charge Curves with Different Current Rate

    150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance


    • R&D Ability and Testing Facilities

    150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance150Ah UPS Battery Pack Long Distance Provided Anti Heating Climate Resistance
