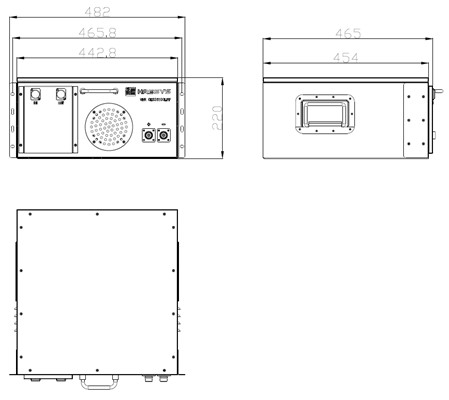

25V 100Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 465.0 mm
X H: 220.0mm
HRESYS Commercial Energy Storage Lithium-ion Battery utilizes
advanced LFP technology and high reliable integrated BMS to ensure
the benefits of long cyclic life, high energy density, compact size
and weight, high safety and reliability, and environment friendly
as well. The 25V Lithium Ion Battery Pack is mainly working as 25V
DC power source, and it consists of 8 cells of Lithium Iron
Phosphate Battery Cells connected in series. HRESYS CES-LFP
Lithium-ion Battery is widely used in Commercial energy storage
system, Industrial energy storage system, Small or Medium-Sized
Renewable Energy Storage System, etc.
1. Voltage detection function
The Product has the functions of cell and module voltage detection.
The cell voltage detection accuracy is less than ± 15mV under
normal temperature static conditions.
2. Temperature detection and adjustment function
With the function of cell and environment temperature detection,
the temperature sampling accuracy is less than ± 2°C within the
operating temperature range. Four battery temperature detection
points and one ambient temperature detection point (maximum 16
battery temperature detection points) are supported by default.
3. Balance function
When the battery pack is charged, if the cell voltage reaches the
equalization turn-on voltage, and the maximum voltage difference is
greater than the equalization voltage difference, the cell that
meets the condition turns on the equalization function. Battery
supports up to 6 channels simultaneously to turn on equalization.
The maximum equalization current is about 75Ma.
4. Communication function
It can communicate with the computer or host through CAN, upload
and save the collected information.
5. Serial port upgrade function
The management system can be upgraded via the CAN interface.
| Item | Specification | Remarks |
| Nominal Capacity | 100Ah | Standard discharge (1) capacity after standard charge (2) |
| Nominal Voltage | 25.6V | Configuration: 8S1P - VHR 32173184LFP-100Ah. Voltage of single cell
is 3.2V. |
| Charge Voltage | 28.8V | @ 25 ± 3℃ |
| Voltage at End of Discharge | 21.4V | @ 25 ± 3℃ |
| Maximum Continuous Charge Current (CC Threshold) | 50A | @ 25 ± 3℃ |
| Charge Voltage-cell | 3.80V/cell | N.A. |
| Maximum Continuous | 100A | @ 25 ± 3℃ |
| Discharge Current |
| Voltage at End of Discharge-cell | 2.50V/cell | N.A. |
| Operation Allowable | Charge: 0～60°C | N.A. |
| Temperature Range | Discharge: -20～60°C | N.A. |
| Continuous Discharge Power | 1.28KW | 50%SOC |
| Continuous Charge Power | 0.51KW | N.A |
| Self-discharge Rate/Month | ≤4% | @ 25 ± 3℃,50%SOC |
| Cycle Life(cycles) | ≥5000 | @ 25 ± 3℃,0.2C/0.5C @80%DOD |
| Operation Allowable | ≤95% RH | Operation |
| Humidity Range | ≤85% RH | Storage |
| Recommended | 0～40°C | Max. 6 month |
| Storage temperature |
| Weight | 33.9(±2)kg | N.A. |
