Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant

    Buy cheap Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant from wholesalers

    Buy cheap Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant from wholesalers
    • Buy cheap Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant from wholesalers
    • Buy cheap Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant from wholesalers
    • Buy cheap Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant from wholesalers

    Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR CES48200LFP
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant

    48V 200Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 615.0 mm X H: 220.0mm


    • Product Specification​
    1Nominal Capacity200AhStandard discharge (1) capacity after standard charge (2)
    1.6.2Nominal Voltage48.0VConfiguration: 15S2P - VHR 32173184LFP-100Ah. Voltage of single cell is 3.2V.
    1.6.3Charge Voltage54.0V@ 25 ± 3℃
    1.6.4Voltage at End of Discharge40V@ 25 ± 3℃
    1.6.5Maximum Continuous Charge Current (CC Threshold)100A@ 25 ± 3℃
    1.6.6Charge Voltage-cell3.80V/cellN.A.
    1.6.7Maximum Continuous200A@ 25 ± 3℃
    Discharge Current
    1.6.8Voltage at End of Discharge-cell2.50V/cellN.A.
    1.6.9Operation AllowableCharge: 0~60°CN.A.
    Temperature RangeDischarge: -20~60°CN.A.
    1.6.10Continuous Discharge Power4.8KW50%SOC
    1.6.11Continuous Charge Power1.92KWN.A
    1.6.12Self-discharge Rate/Month≤4%@ 25 ± 3℃,50%SOC
    1.6.13Cycle Life(cycles)≥5000@ 25 ± 3℃,0.2C/0.5C @80%DOD
    1.6.14Operation Allowable≤95% RHOperation
    Humidity Range≤85% RHStorage
    1.6.15Recommended0~40°CMax. 6 month
    Storage temperature
    1.6.16Weight97.5(±2)kgN.A.

    • Features and Benefits​
    1. Long enough distance provided between module and BMS, where the most of the thermal generated
    2. Air exchange through well designed window-shades to ensure thermal balance inside of the battery case
    3. air-flow channels are designed in length-wise direction, and also air-flow channel is designed in cross-wide direction
    4. It can communicate with the computer or host through CAN, upload and save the collected information
    5. The Product has the functions of cell and module voltage detection. The cell voltage detection accuracy is less than ± 15mV under normal temperature static conditions.

    • Dimension
    Model No.Nominal VoltageNominal CapacityDimensionWeightTerminalRemarks
    (W X D X H, mm)MaterialType
    VHR CES48200LFP48V200AhWidth: 482.0mm (±2)97.5(±2)kgSteelM65U
    Depth: 615.0mm (±2)
    Height: 220.0mm (±2)

    • Communication Interfaces Description

    CAN adopts 8Pin straight PCB welding socket (RJ45) to provide CAN protocol, the pin assignment of RJ45 is defined as follow:


    RJ45 Pin Definition
    RJ45 PinDefinitionDescription
    1CAN_HDominant High
    2CAN_LDominant Low
    3PWR+Power Positive
    4NCN.A.
    5PWR-Power Negative
    6NCN.A.
    7ADD_RXAddress Assignment Reception
    8ADD_TXAddress Assignment Transmission

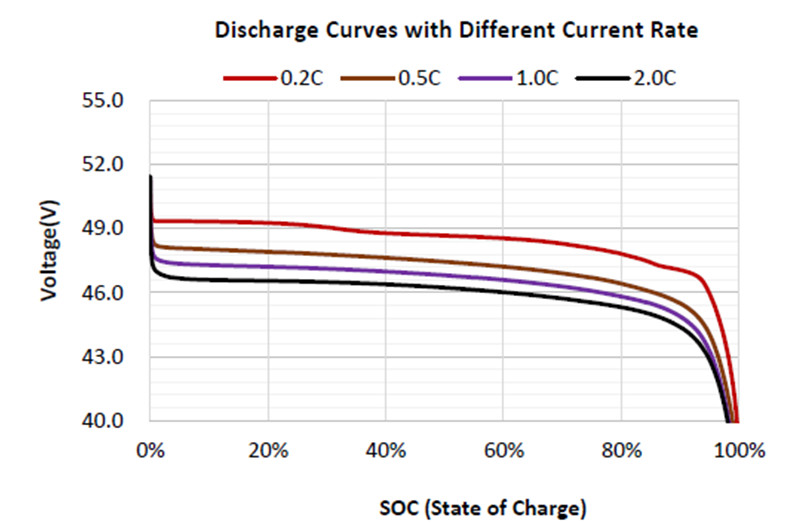

    • Discharge Curves with Different Current Rate

    Long Lasting UPS Battery Pack 200Ah Lightweight High Temperature Resistant
