    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

    12V 180AH Lead-acid Batteries for solar street light , L520mm x W240mm x H220mm


    • Product Overview

    HRESYS GT Series Valve Regulated Lead Acid Battery is specially designed for solar street light.

    Applications including renewable energy system, UPS, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications

    With international leading technologies and State-of-the-art automated manufacturing, GT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​


    • Product Specification​
    Nominal Voltage (V)12
    Nominal Capacity (25 C)180 Ah@C10 (to 1.80Vpc)
    Dimension (mm)L520mm x W240mm x H220mm
    Approx. Weight53 kg (116.8 lbs.)
    Terminal TypeFemale Copper Insert M8
    Internal ResistanceApprox. 0.0033 Ohm (fully charged@ 20°C)
    Max. Charge Current45 A
    Self-DischargeApprox. 3% per month @ 20°C
    Ambient Temperature

    Discharge: -40~55°C

    Charge: -20~50 °C

    Storage: -20~45°C

    Float Charge Voltage13.6V/cell @25℃
    Equalize Charge Voltage14.4V/cell @25℃
    Container MaterialABS (UL94-V0 optional)

    • Applications

    o Renewable energy

    o Outdoor telecom

    o Mini Solar Power System

    o UPS

    o emergency light systems

    o Solar street light


    • Features and Benefits​

    - Long Cycle Life: 10 years long life design @ 25℃

    - Multi-purpose Application: The battery can be used for backup application

    - Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

    - High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable


    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Battery Dimension

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life


    • Performance Curves

    Cyclic Characteristics

    High cycle performance: up to 450 cycle at 80%DOD

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

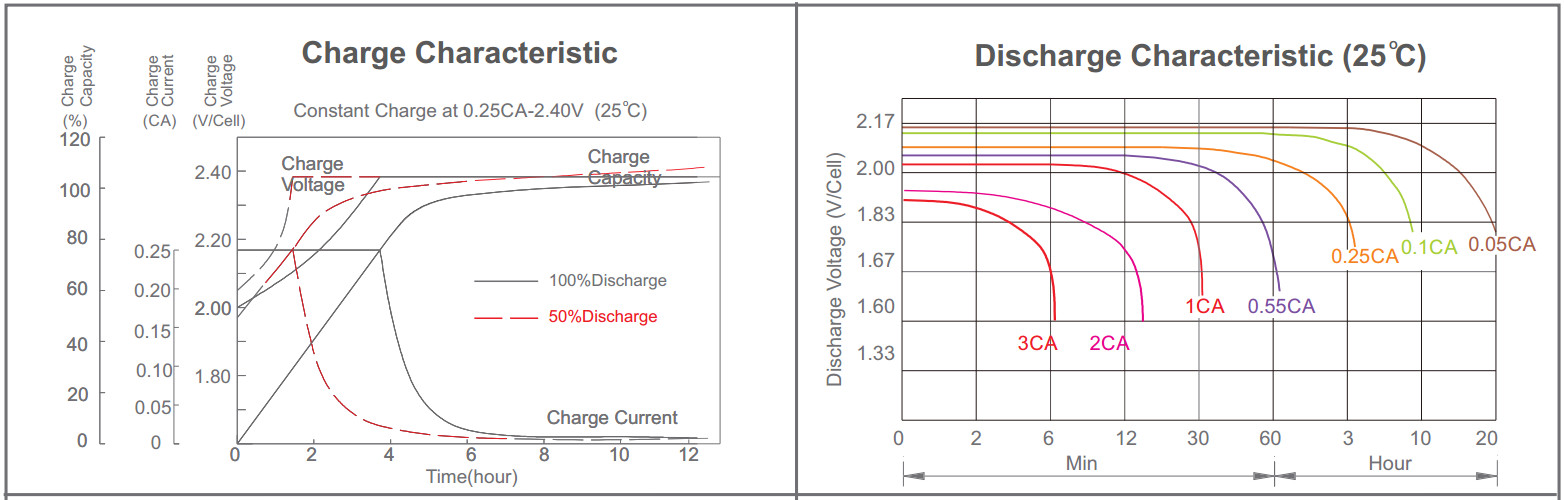

    • Charge/discharge Characteristics

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

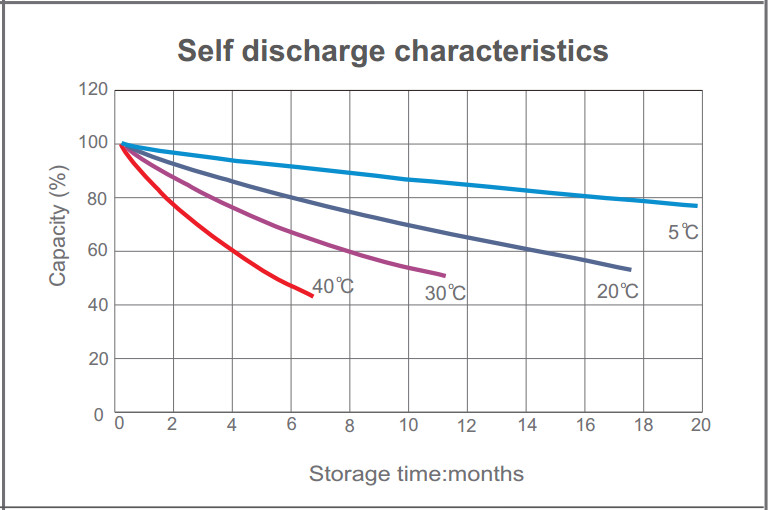

    • Self-Discharge Characteristics

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life


    • Temperature Characteristics

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life


    • Float voltage VS float life

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life


    • Capacity VS temperature

    180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life
