    Long Floating Life 12V Telecom Battery 170AH Front Access Terminals

    Ask Lasest Price
    Model Number : 12DF170
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

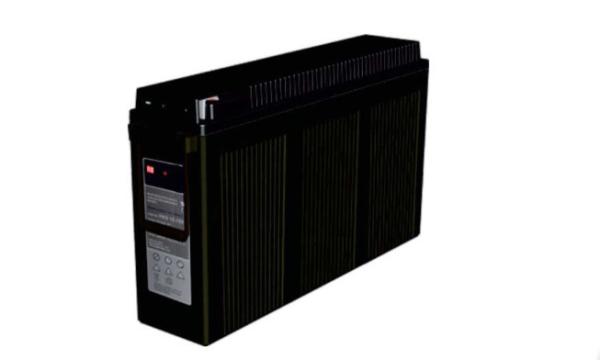

    Long Floating Life 12V Telecom Battery 170AH Front Access Terminals

    12 V 170AH Lead-acid Batteries with Long Life of 12 Floating Charging Conditions,L560mm x W125mm x H316mm


    • Product Overview

    The HRESYS DF (Duration Front) series VRLA batteries is especially designed for telecommunication

    with 12+ years float design life. By combining the newly developed paste formula with up-to-date AGM

    structures, the series meet latest IEC, British and Telcordia standards. Front Access connection and

    centralized venting system of DF series for fast, safety installation and maintenance.


    • Features and Benefits​

    - 12 years long floating life design
    - the warranty terms are based on different application.
    - Front access terminals allowing reliable and versatile connections
    - Long and Narrow shape fits with standard 19” and 23” cabinets
    - Mainly used in Emergency Power Supply
    - 30% residual value for recycle
    - Reliable seal performance, recombination efficiency reach 99%
    - With tin-coated red copper insert to reduce internal resistance, and with good conductivity
    - Special patent grid alloy


    • Complied standards

    - IEC 60896-21/22

    - GB/T19638

    - YD/T 799

    - JIS C8704

    - BS6290 part 4

    • Management and Product Certificates

    - ISO9001:2015

    - ISO14001:2015

    - OHSAS18001:2007

    - CE Certificate

    • Product Specification​
    Nominal Voltage (V)12 (6 cells per unit)
    Nominal Capacity (25 C)170 Ah @ 10HR-rate (to 1.80Vpc)
    Dimension (mm)L560mm x W125mm x H316mm
    Approx. Weight51.2 kg (112.8 lbs)
    Terminal TypeFemale Copper Insert M8 (torque: 10~12N.m)
    Internal ResistanceApprox. 0.0043 Ohm (fully charged)
    Max. Charge Current42.5 A
    Max. Discharge Current (5S)1080 A
    Short Circuit Current2750 A
    Self DischargeApprox. 2.5% per month @ 20℃
    Ambient TemperatureDischarge: -20~60℃
    Charge: -20~55℃
    Storage: -20~45℃
    Float Charge Voltage13.5V/block @25℃(-3mV/ cell/ C)
    Сycle Use Charge Voltage14.1V/block @25℃
    Container MaterialABS UL ( 94-V0 optional)

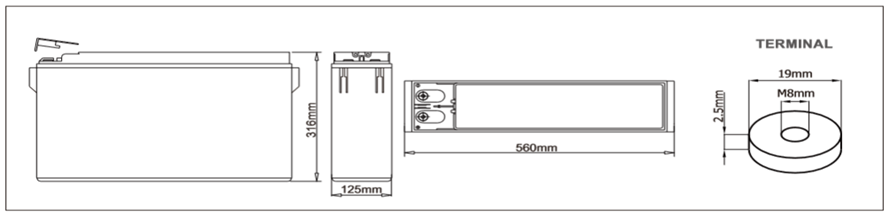

    • Battery Dimension


    • Performance Curves

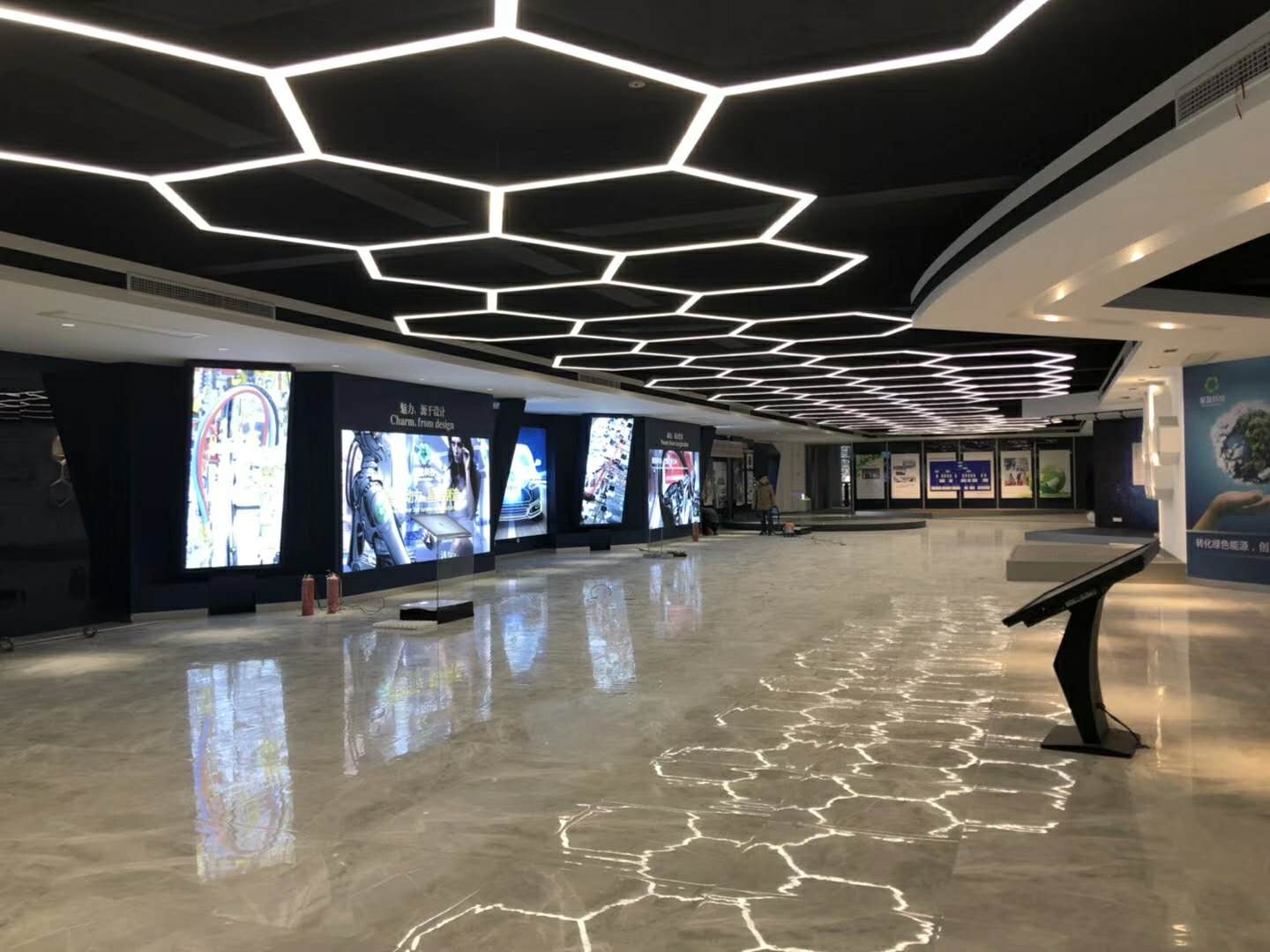

    • Factory Overview
