Brand Name : | HRESYS |
Model Number : | VHR 12GT7.2 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 1800000 PCS/YEAR |
Delivery Time : | 30 DAYS |

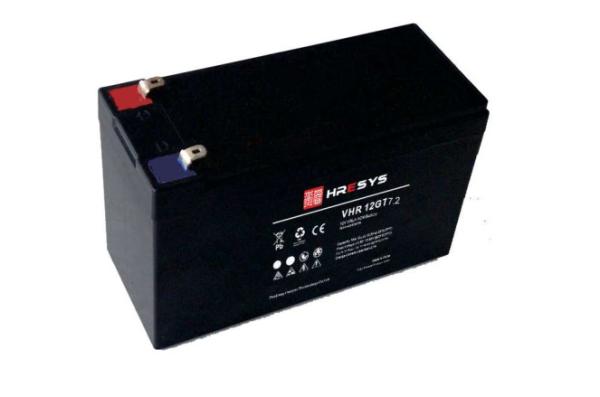

12 V 7.2 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm
HRESYS GT VRLA AGM(Absorbent Glass Mat) series is Top terminal battery for General use, such as UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications. With advanced manufacturing technique and industry scale, GT series delivers high energy density and high reliability performance.
Nominal Voltage (V) | 12 |
Designed Floating Life (25℃) | 5 Years |
Nominal Capacity (25℃) | 7.2 Ah@ C20 (to 1.75Vpc) |
Dimension (mm) | L151mm x W65mm x H101mm |
Approx. Weight | 2.19 kg (4.67 lbs) |
Terminal Type | Fasten Tab F2 |
Internal Resistance | ≤ 0.026m Ohm (fully charged @25℃) |
Max. Charge Current | 2.1 A |
Max. Discharge Current(5S) | 105 A |
Short Circuit Current | 600 A |
Self Discharge | Approx. 2.5% per month @ 20℃ |
Ambient Temperature | Discharge: -20~55℃ Charge: -20~50℃ Storage: -20~45℃ |
Float Charge Voltage | 13.6V @25℃ |
Equalize Charge Voltage | 14.4V @25℃ |
Container Material | ABS (UL94-V0 optional) |
o IEC 60896-21/22
o GB/T 19638
o IEC61427
o JIS C8704
o BS6290 PART4
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
![]() |
