220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block

    Buy cheap 220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block from wholesalers

    Buy cheap 220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block from wholesalers
    • Buy cheap 220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block from wholesalers

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 12GT220
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

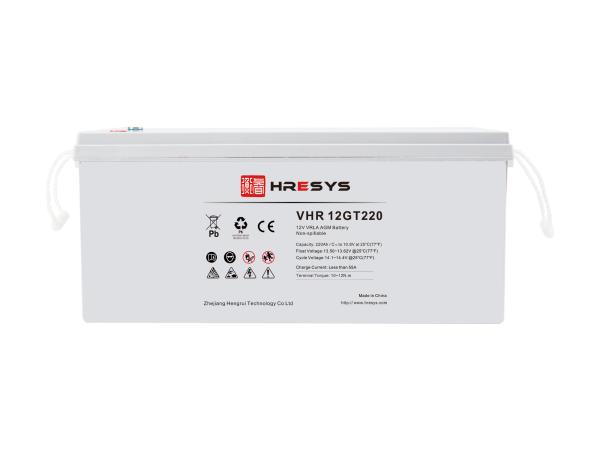

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block

    12V 220AH Lead-acid Batteries for UPS , L525mm x W267mm x H220mm


    • Product Overview

    HRESYS GT Series Valve Regulated Lead Acid Battery is specially designed for UPS.

    Applications including renewable energy system, UPS, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications

    With international leading technologies and State-of-the-art automated manufacturing, GT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​


    • Product Specification​
    Nominal Voltage (V)12
    Nominal Capacity (25 C)220 Ah@C10 (to 1.80Vpc)
    Dimension (mm)L525mm x W267mm x H220mm
    Approx. Weight62.5 kg (137.8 lbs.)
    Terminal TypeFemale Copper Insert M8
    Internal ResistanceApprox. 0.0028 Ohm (fully charged@ 20°C)
    Max. Charge Current55 A
    Self-DischargeApprox. 3% per month @ 20°C
    Ambient Temperature

    Discharge: -40~55°C

    Charge: -20~50 °C

    Storage: -20~45°C

    Float Charge Voltage13.6V/cell @25℃
    Equalize Charge Voltage14.4V/cell @25℃
    Container MaterialABS (UL94-V0 optional)

    • Features and Benefits​

    - Long Cycle Life: 10 years long life design @ 25℃

    - Multi-purpose Application: The battery can be used for backup application

    - Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

    - High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable


    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Battery Dimension

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block


    • Performance Curves

    Cyclic Characteristics

    High cycle performance: up to 450 cycle at 80%DOD

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block


    • Charge/discharge Characteristics

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block


    • Self-Discharge Characteristics

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block


    • Temperature Characteristics

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block


    • Float voltage VS float life

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block


    • Capacity VS temperature

    220AH UPS Sealed Lead Acid Battery Float Charge Voltage 13.6V/ Block
