Tubular Residential Battery Storage Systems 2 V 100 AH For Harsh Environment Application

    Buy cheap Tubular Residential Battery Storage Systems 2 V 100 AH For Harsh Environment Application from wholesalers

    Buy cheap Tubular Residential Battery Storage Systems 2 V 100 AH For Harsh Environment Application from wholesalers
    • Buy cheap Tubular Residential Battery Storage Systems 2 V 100 AH For Harsh Environment Application from wholesalers

    Tubular Residential Battery Storage Systems 2 V 100 AH For Harsh Environment Application

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 2 OPzV 100
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Tubular Residential Battery Storage Systems 2 V 100 AH For Harsh Environment Application

    2 V 100 AH Tubular Gel Batteries for harsh environment application , L103mm x W206mm x H390mm


    • Product Overview

    HRESYS OPzV Series is traditional Tubular Gel Type Battery. It utilizes tubular positive

    plate and fumed silica Gel electrolyte to provide excellent deep cyclic performance, fast

    recovery performance and high reliability. OPzV Series is designed mainly for cyclic

    applications at harsh working conditions, such as renewable energy storage, power

    utilities, telecom cyclic use, etc.

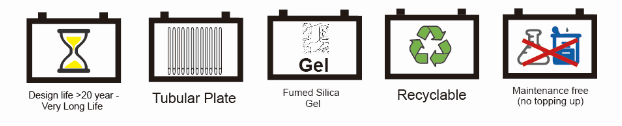

    • Features and Benefits

    - 20 years design life at floating condition

    - Tubular positive plate and fumed silica gel enables excellent deep cycle performance

    - Low density electrolyte reduce corrosion and enable long service life

    - Excellent deep discharge recovery capability

    - Reliable maintenance-free and leakage-free construction

    - Wide operating temperature range from -40°C to 60°C

    - Low self-discharge rate and long shelf life(1 year at 25°C)

    - Din standard compliance


    • Applications

    o Renewable energy

    o Telecom

    o UPS

    o Utility

    • Complied standards
      • IEC 60896-21/22
      • DIN40472
      • IEC61427
      • YD/T1360
      • Eurobat guide, long life
      • BS6290 part 4

    • Management and Product Certificates
      • ISO9001:2015
      • ISO14001:2015
      • OHSAS18001:2007
      • CE Certificate

    • Product Specification​
    Nominal Voltage (V)2
    Nominal Capacity (25°C)100 Ah@10HR-rate (to 1.80Vpc)
    Dimension (mm)L103mm x W206mm x H390mm
    Approx. Weight13.5 kg (29.8 lbs)
    Terminal TypeFemale Copper Insert M8(torque:10~12N.m)
    Internal ResistanceApprox. 1.98 Ohm (fully charged)
    Designed Floating Life(20°C)20+ Years
    Self DischargeApprox. 2.0% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -30~55 C
    Storage: -25~45 C
    Float Charge Voltage2.23V/block @25℃
    Equalize Charge Voltage2.35V @25℃
    Container MaterialABS UL ( 94-V0 optional)

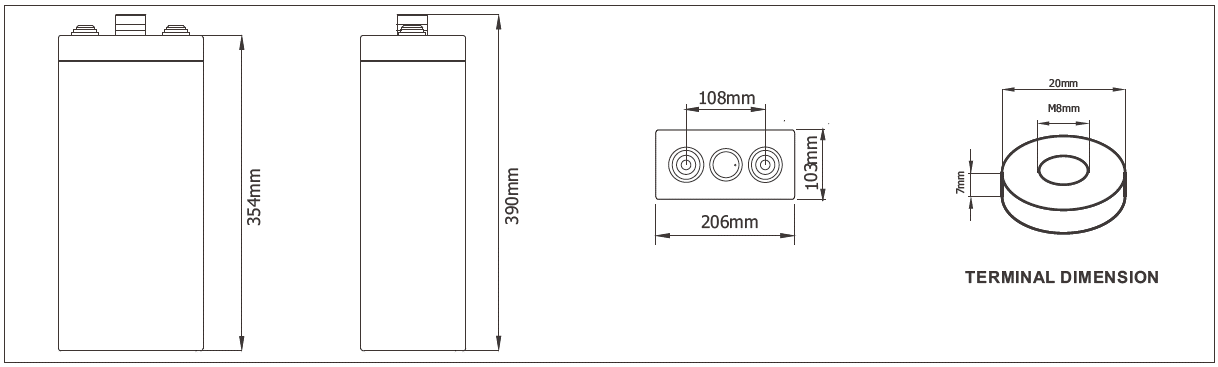

    • Battery Dimension
      • High cycle performance: up to 400 ~ 600 cycle at 100%DOD


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 1800 cycle at 800%DOD


    · Charge Characteristics
