    UPS Golf Cart Lithium Ion Motorcycle Battery 38.4V 54AH High Capacity

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR ES3854LFP
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    UPS Golf Cart Lithium Ion Motorcycle Battery 38.4V 54AH High Capacity

    38.4V/54AH High Capacity/ long cycle life Lifepo4 UPS/golf cart Lithium Ion Battery Pack


    • HRESYS Integrated Lithium-ion Battery

    ES-LFP Series Lithium-ion Battery is an ideal replacement for traditional

    lead acid battery utilizing advanced LiFePO4 technology and integrated

    BMS with the benefits of long cycle life, light in weight, safety and

    excellent high and low temperature performance. ES-LFP Series Lithium-

    ion Battery is widely used in energy storage, UPS, golf cart and other lead

    acid battery replacement


    • Product Specification​
    Electrical Characteristics
    Nominal Voltage38.4V
    Nominal Capacity@0.2C54Ah
    Energy2073Wh
    Internal Resistance≤50m
    Cycle Life≥3000 Cycles
    Months Self Discharge≤3.5% per month at 25℃
    Mechanical
    Cell & MethodIFR32700 N60, 12S9P
    Plastic CaseABS
    Dimension(L × W × H × TH)480 × 170 × 200 × 200mm
    WeightApprox. 22.0Kg
    TerminalM6
    Standard Charge
    Charge Voltage43.8 ± 0.2V
    Charge Mode(CC/CVAt 0℃~45℃ temperature, charged to 14.6V at a constant current of
    0.2C, and then charged continuously with constant voltage of
    14.6V until the current was not more than 0.02C.
    Charge Current10.8A
    Max. Charge Current27A
    Standard Discharge
    Discharge Current10.8A
    Max. Continuous Current54A
    Max. Pulse Current120A(<3S
    Discharge Cut-off Voltage33.8V
    Operating Environment
    Charge Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature—20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
    Storage Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
    Water Dust ResistanceIP55
    Protection Parameter
    Over-current Protection Current150A
    Over-charge Protection Voltage45.6V
    Over-discharge Protection Voltage27.6V
    High Temperature Protection65℃

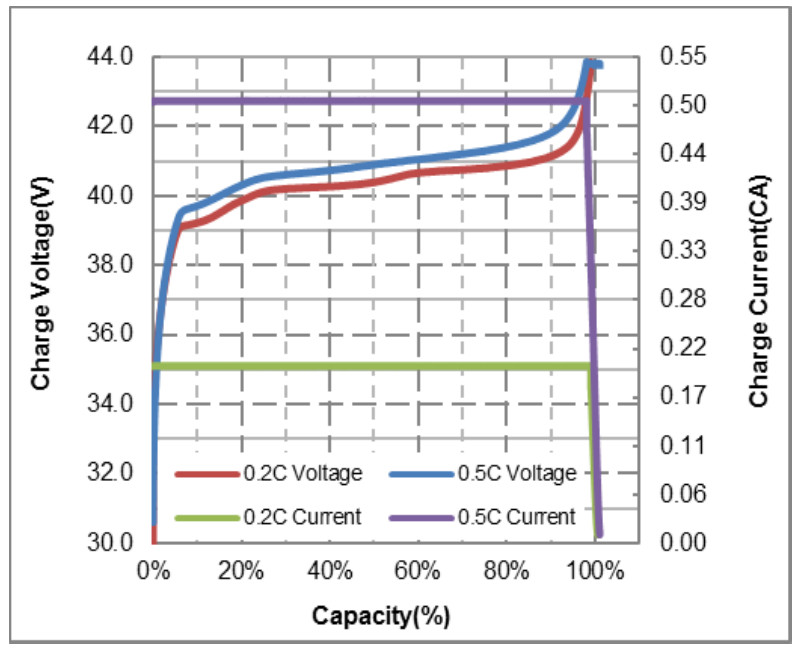

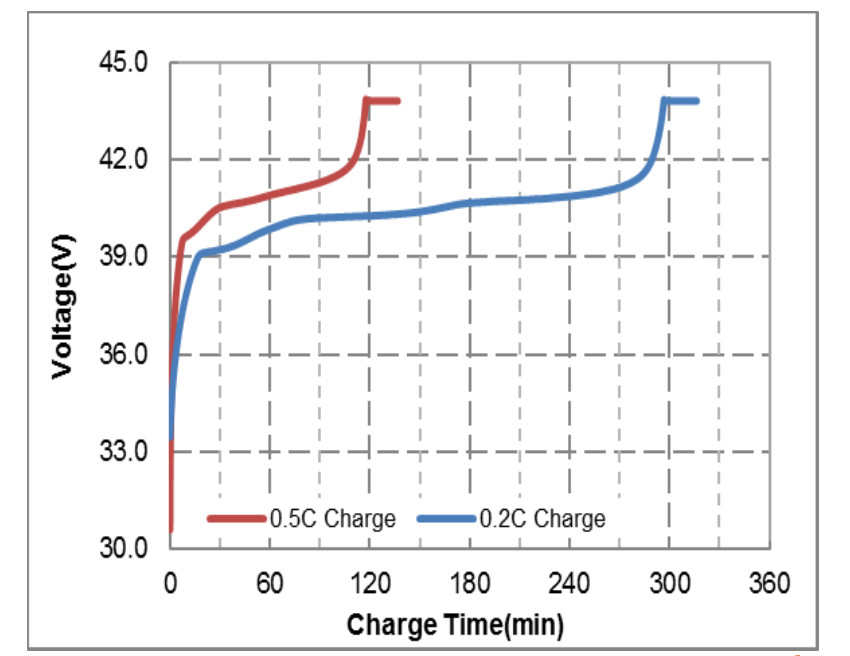

    • Charge Characteristics

      Charge Characteristics @0.2C&0.5C, 25 ℃

    UPS Golf Cart Lithium Ion Motorcycle Battery 38.4V 54AH High CapacityUPS Golf Cart Lithium Ion Motorcycle Battery 38.4V 54AH High Capacity

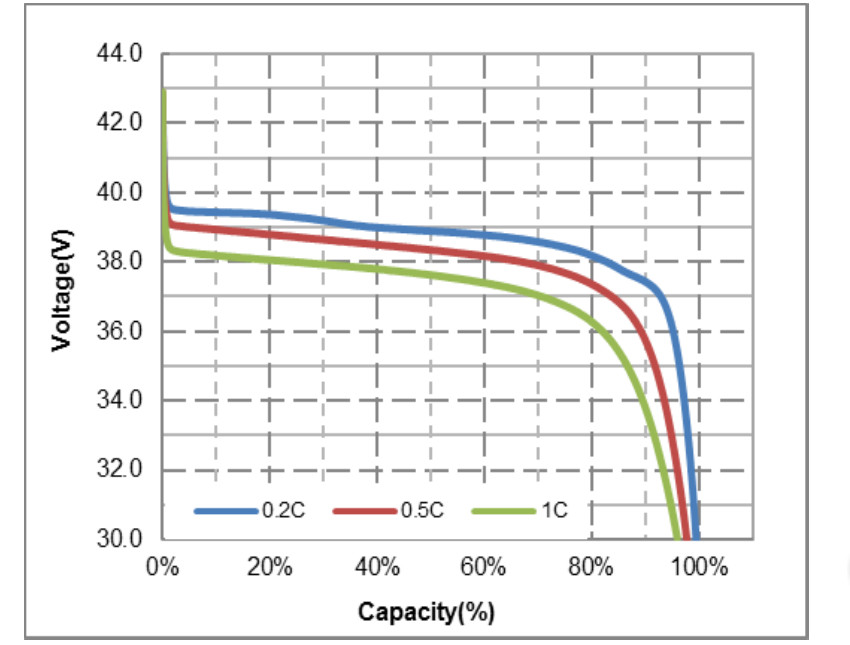

    • Different Rate Discharge Curve

    Different Rate Discharge Curve @ 25 ℃

    UPS Golf Cart Lithium Ion Motorcycle Battery 38.4V 54AH High CapacityUPS Golf Cart Lithium Ion Motorcycle Battery 38.4V 54AH High Capacity
