Emergency Light System UPS Lead Acid Battery 200AH High Lifespan Climate Resistance

    Buy cheap Emergency Light System UPS Lead Acid Battery 200AH High Lifespan Climate Resistance from wholesalers

    Buy cheap Emergency Light System UPS Lead Acid Battery 200AH High Lifespan Climate Resistance from wholesalers
    • Buy cheap Emergency Light System UPS Lead Acid Battery 200AH High Lifespan Climate Resistance from wholesalers

    Emergency Light System UPS Lead Acid Battery 200AH High Lifespan Climate Resistance

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 12DT200S
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Emergency Light System UPS Lead Acid Battery 200AH High Lifespan Climate Resistance

    12V 200AH Duration Top Terminal Lead-acid Batteries for emergency light system, L532mm x W207mm x H220mm


    • Product Overview

    HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS

    Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.

    With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​


    • Features and Benefits​

    · Valve Regulated Lead Acid Silicon Gel technology

    · Thick plate with excessive active material enables excellent cyclic performance

    · Maintenance-free operation and non-leakage

    · Wide operation temperature range for multiple working scenarios


    • Product Specification​

    Nominal Voltage (V)12
    Nominal Capacity (25 C)200 Ah@C10 (to 1.80Vpc)
    Dimension (mm)L532mm x W207mm x H220mm
    Approx. Weight57.0kg (125.7 lbs.)
    Terminal TypeFemale Copper Insert M8
    Internal ResistanceApprox. 0.0033 Ohm (fully charged@ 20°C)
    Max. Charge Current50 A
    Self-DischargeApprox. 3% per month @ 25°C
    Ambient Temperature

    Discharge: -20~55°C

    Charge: -20~50 °C

    Storage: -20~45°C

    Float Charge Voltage13.6V/block @25℃
    Equalize Charge Voltage14.4V/block @25℃
    Container MaterialABS (UL94-V0 optional)

    • Applications

    o Outdoor telecom

    o UPS

    o IDC

    o Security and alarm system

    o Utilities

    o Emergency light systems

    o CATV


    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate

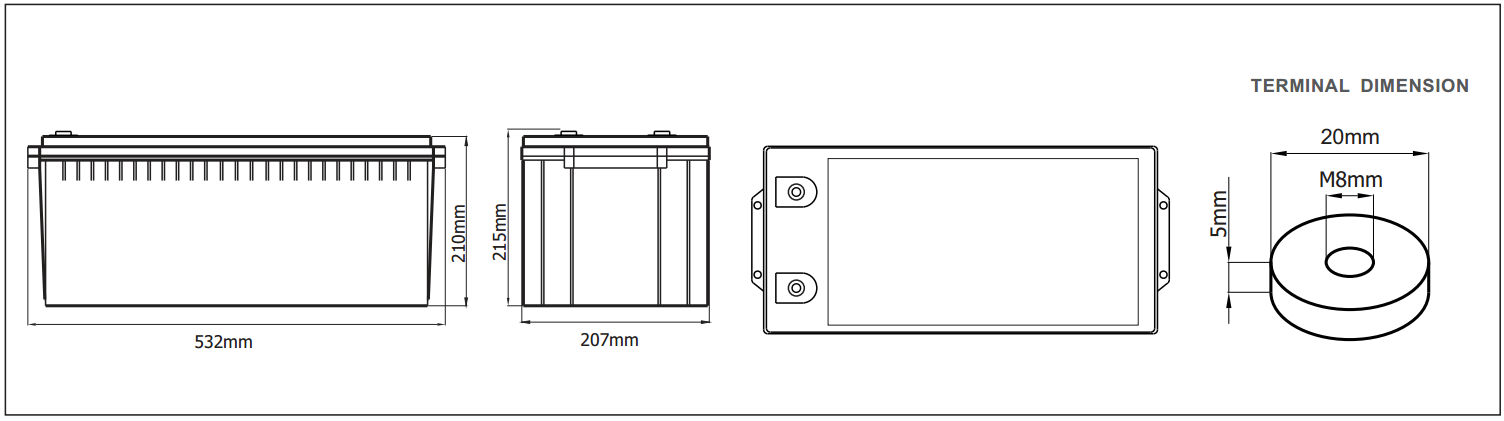

    • Battery Dimension


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 550 cycle at 80%DOD


    12 V 120 AH Superior Cycle Gel Lead-acid Batteries for Cyclic Applications with Frequent Cycles, L405mm x W174mm x H232m
