    3.65V 6AH Residential Lithium Ion Battery High Volumetric Energy Density Ratio

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 32700LFP-6.0AH
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    3.65V 6AH Residential Lithium Ion Battery High Volumetric Energy Density Ratio

    3.65V 6AH LiFePO4 Cell with Long Life and High Capacity,H 70.5 X D32.4 X W10.5


    • Product Overview

    HRESYS VHR 32700LFP-6.0AH lithium iron phosphate battery adopts mature cylindrical battery production process, which has the advantages of low calorific value, non-thermal charge-discharge battery and low internal resistance. Charging and discharging capacity gap is only 0.5%, electricity is basically absorbed and rarely into heat. Its charge-discharge curve is very flat (at least 80%) and fluctuates within a stable 0.1V voltage difference over a long period of time. Charging generally adopts constant current charging to constant voltage mode, it can also be charged and discharged according to customer's needs. The whole system has the characteristics of high energy density, small size and light weight. It is suitable for small-scale energy storage, commercial and industrial energy storage, electric motorcycle and electric bicycle.


    • Features

    1. High volumetric energy density ratio, the equivalent volume is more than 5% higher than the conventional lithium iron phosphate battery capacity;

    2. Long cycle life, more than 2000 cycles;

    3. Low calorific value. The cylindrical lithium iron phosphate battery has the characteristics of low calorific value and low temperature rise;

    4. Low self-consumption and can be stored for a long time;

    5. High energy conversion efficiency, reducing loss during energy charging and discharging;


    • Product Specification​
    ItemSpecificationCondition
    Nominal Capacity6.0Ah1) 25℃
    Minimal Capacity6.0Ah2) Discharge Current: 0.2C
    Nominal Voltage3.2V-
    Operating Voltage Range2.0V-3.65V@ 25℃
    Internal Impedance (1kHz)≤20 (mΩ)Fresh Cell
    Ex-work Capacity50% SOCN.A.
    Operating Temperature (Charge)0℃-45℃Refer to 2.2
    Operating Temperature (Discharge)-20℃-60℃Refer to 2.3
    Storage Temperature0℃-45℃N.A.
    WeightApproximately 140gsN.A.
    DimensionRefer to 3.2N.A.

    • Charge Parameters
    ItemSpecificationCondition
    Standard Charge Current0.2 C (1.2A)25℃
    Standard Charge VoltageLimited voltage 3.65V/Cell-
    Standard Charge ModeUnless otherwise specified, “Standard Charge” shall consist of continuous charging at constant current of 0.2C to limited voltage 3.65V/Cell, and then the cell shall be charged at constant voltage of 3.65V/Cell while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05C. For test purposes, charging shall be performed at 25℃± 2℃.
    Standard Charge Temperature25 ± 2℃Cell Temperature
    Max. Temperature Range0℃~45℃Refer to 2.2.7
    Max. Charge VoltageMax. 3.7VNo matter what charge modes, charging shall be terminated when the cell voltage exceeds the Max. Charge Voltage

    • Discharge Parameters
    ItemSpecificationCondition
    Standard Discharge Current0.2C25℃
    Max. Continuous Discharge Current3C-
    Max. Pulse Discharge Current (Short Pulse)5CWhen the cell temperature is less than 50℃: maximum discharge time is ms.
    Discharge Cut-off Voltage2.0V/Cell-
    Standard Charge Temperature25 ± 2℃Cell Temperature
    Max. Temperature Range-20℃~60℃No matter what discharge modes (continuous discharge or pulse discharge), discharging shall be terminated when the cell temperature exceeds the Max. Temperature Range.

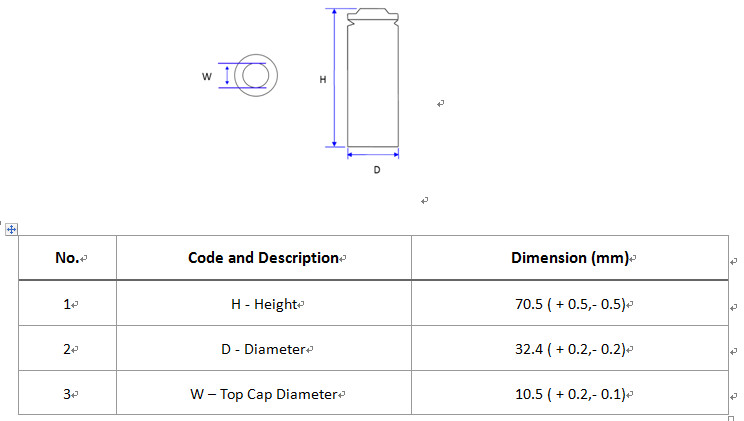

    • Battery Dimension
