    50 AH Residential Energy Storage Systems , Solar System Batteries Anti Overcharge

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 12SCG50
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    50 AH Residential Energy Storage Systems , Solar System Batteries Anti Overcharge

    12 V 50 AH Superior Cycle Gel Lead-acid Batteries for High Cycle Required Applications, L330mm x W171mm x H175mm


    • Product Overview

    HRESYS SCG series represents Superior Cyclic Gel battery, this series delivers high cycle life, excellent high & low temperature performance, capacity available from 38Ah to 250Ah. We highly proposed this series be used for high cycle applications like renewable energy systems, outdoor telecom.


    • Features and Benefits​

    · Long life design up to 12 years

    · Gel technology prevents water loss and to resist thermal runaway

    · Thick plate with excessive active material enables excellent cyclic performance

    · Designed for customers’ multiple applications

    · Wide operation temperature range


    • Working Scenarios

    · Multiple working occasions like solar, energy storage, telecom, UPS, etc.

    · Batteries are normally used in cyclic applications with frequent cycles

    · When battery is used in cyclic scenarios DOD shall normally not exceed 60%

    · Guarantee is provided differently due to different working conditions


    • Applications

    o Home & Mini Energy Storage System

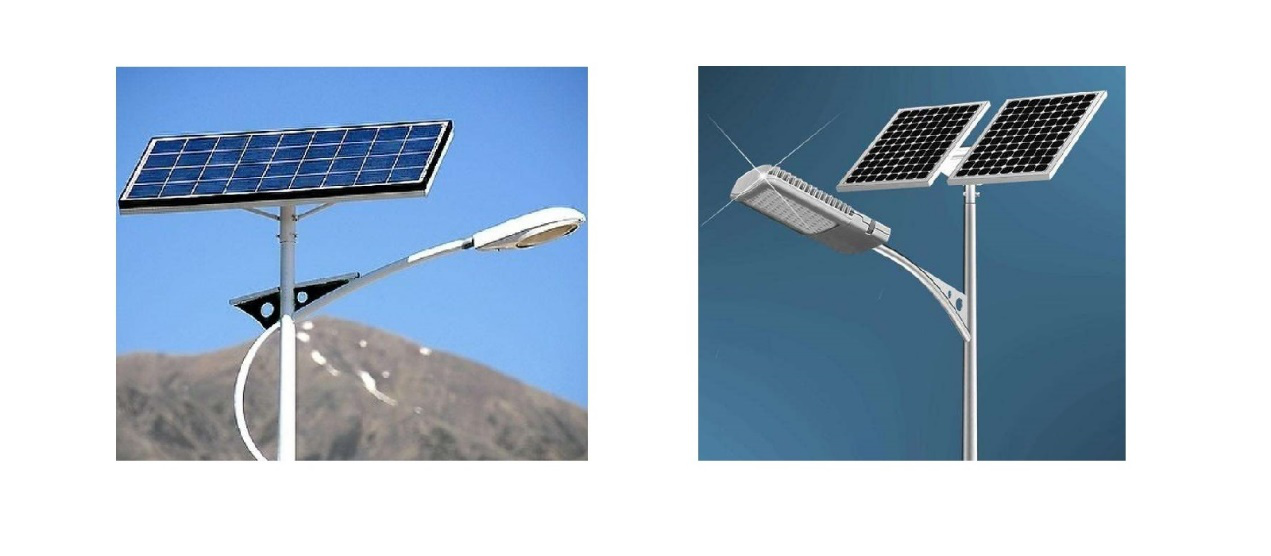

    o Solar Street Lights

    o Telecommunication

    o Uninterrupted Power Supply (UPS)

    o Power Utilities

    • Complied standards

    o IEC 60896-21/22

    o GB/T 19638

    o IEC61427

    o JIS C8704

    o BS6290 part 4


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Product Specification​
    Nominal Voltage (V)12 (6 cells per unit)
    Nominal Capacity (25 C)50 Ah@ 10HR-rate (to 1.80Vpc)
    Dimension (mm)L330mm x W171mm x H175mm
    Approx. Weight18.6 kg (41.0 lbs)
    Terminal TypeF-M6 or cable (torqure:6-8N.m for F-M6)
    Internal ResistanceApprox.0.0065 Ohm (fully charged @ 20℃)
    Max. Charge Current12.5A
    Max. Discharge Current (5S)500A
    Short Circuit Current1700A
    Self DischargeApprox. 2.5% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -20~55 C
    Storage: -25~45 C
    Float Charge Voltage13.5~13.62V/block @25℃
    Cycle Use Charge Voltage14.1~14.4V/block @25℃
    Container MaterialABS(UL94-V0 optional)

    • Battery Dimension


    • Performance Curves
