    Lithium Iron Microgrid Energy Storage System

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : HRESYS Battery Energy Storage System
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    Lithium Iron Microgrid Energy Storage System

    HRESYS high performance Lithium Iron Phosphate battery and integrated with smart BMS/Battery Energy Storage System


    • HRESYS BESS Introduction

    HRESYS Battery Energy Storage System (BESS) is designed based on high performance Lithium Iron Phosphate (LFP) battery and integrated with smart Battery Management System (BMS), Thermal Management System (TMS), Alarming System, etc. HRESYS BESS has been optimally designed to be compatible to most of the Power Conversion System (PCS) in the market and it is also provided with intelligent Energy Management System (EMS) with remote monitoring platform as an option for customer’s diverse demand.

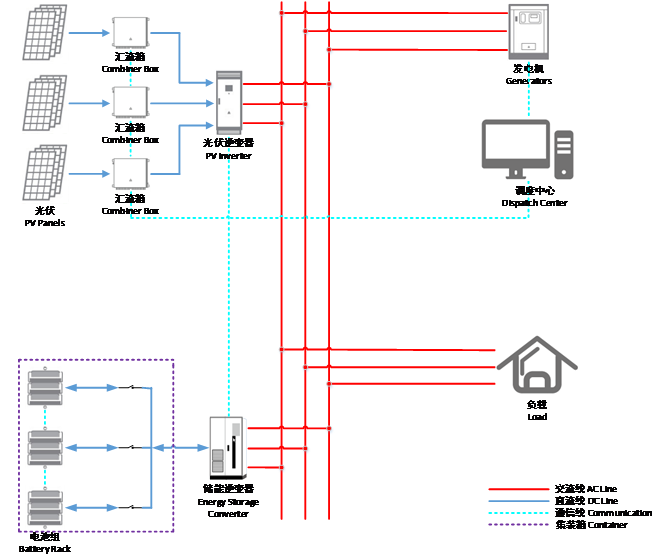

    • Application


    • Product Specification

    This project proposal is made according to customer’s requirement on battery system consists of battery modules, battery management system (BMS), battery rack, 40HQ standard battery container includes container built-in fire suppression system, HVAC (heating, ventilation, air conditioning), security and alarming system, illuminating system, grounding system) and other accessories. The battery system is mainly applied for electrical energy storage system, large scale UPS system and other relevant applications



    • Energy Storage System Introduction
    Item No.NameSpecificationQty. (sets)
    1LFP Battery Module32V 300Ah/9.6kWh216
    2Battery Rack/Cluster 9
    3High Voltage Control Box STD_V1.1 (for each battery cluster)Includes contactor, Switch Disconnector with Fuse, etc. BAMU, BCMU are not included.9
    4BMSIncludes 1 X BAMU, 9 X BCMU, 216 X BMU1
    5Combiner Box (Optional)Includes circuit breaker, lighting arresters and other required accessories for connecting with PCS or other external equipment1
    6Wiring HarnessPower cables, communication cablesLump Sum
    7PCS (Optional)500KW1
    8On/Off Grid Cabinet (Optional)500KVA1
    9EMS (Optional) 1
    10DC Monitoring System (Optional) 1
    11AC Distribution Box (Optional) 1

    • Battery System Specification

    ItemNameParametersRemarks
    Battery CellCell ModelVHR45173184LFP-150AH
    Nominal Capacity150Ah
    Energy Density≥155Wh/kg
    Nominal Voltage3.2V
    Charge Limited Voltage3.65V
    Discharge Cut-off Voltage2.7V
    CertificationUL1973, UL2580
    Battery ModuleDimension482×560×220 mm
    Specifications32V 300Ah/9.6kWh
    WeightApprox.80kg
    Cooling MethodFan-cooling/Nature-Cooling
    BatteryNominal Voltage768V
    ClusterDimension1558mm*630mm*2390mm
     Grouping Method2P240 S
     Nominal Capacity300Ah
     DC Voltage Range648V-876V
     Nominal Energy Capacity230.4KWh
     Max. impulse Discharge Current300A
     Max. Continuous Charge Current150A
     Max. Continuous Discharge current150A
     Charge Cut--off Current5A
     Charge Cut-off Voltage876V
     Discharge Cut-off Voltage648V
     Capacity Retention Rate>97%
     WeightAbout 2100 kg
     CommunicationRS485/Ethernet/GPRSPCS
     RS485/CANBMS
    Battery SystemSystem Grouping Mode9 Battery Clusters in Parallel
    Nominal Power Capacity500kWPCS input power
    Nominal DC Voltage768V
    DC Voltage Range648V-876V
    Nominal Energy Capacity2073KWh
    IP ClassIP20Without enclosure
    Working ConditionCharge Temperature0~45℃
    Discharge Temperature0~60℃
    Charge and Discharge HumidityRH≤80%
    StorageTemperature0~45℃
    HumidityRH≤80%
    Battery ContainerIP ClassIP54
    Container Type40HQ

    • Battery Rack Design


    • BMS (Battery Management System)

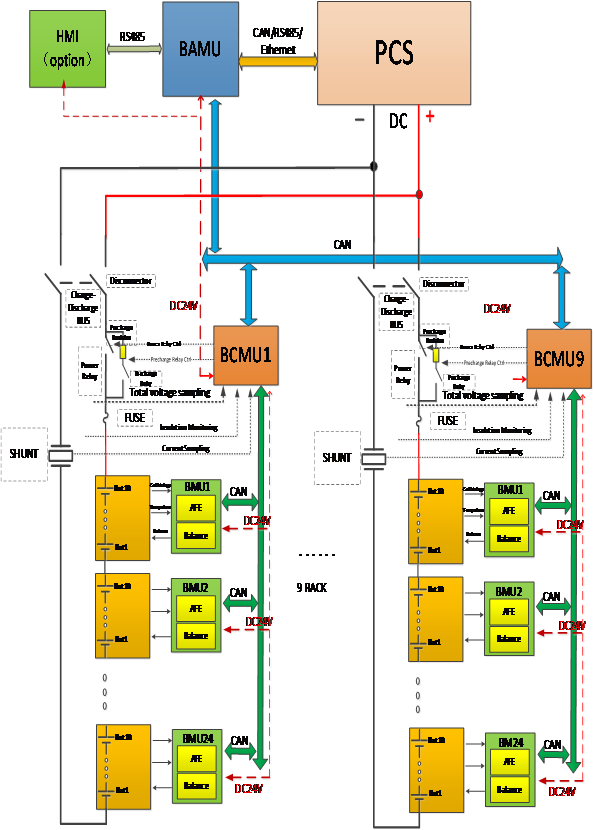

    BMS System Structure Diagram
