Maintenance Free Residential Battery Storage Systems Tubular Gel Type No Explosion

    Buy cheap Maintenance Free Residential Battery Storage Systems Tubular Gel Type No Explosion from wholesalers

    Buy cheap Maintenance Free Residential Battery Storage Systems Tubular Gel Type No Explosion from wholesalers
    • Buy cheap Maintenance Free Residential Battery Storage Systems Tubular Gel Type No Explosion from wholesalers

    Maintenance Free Residential Battery Storage Systems Tubular Gel Type No Explosion

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 6 OPzV 600
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Maintenance Free Residential Battery Storage Systems Tubular Gel Type No Explosion

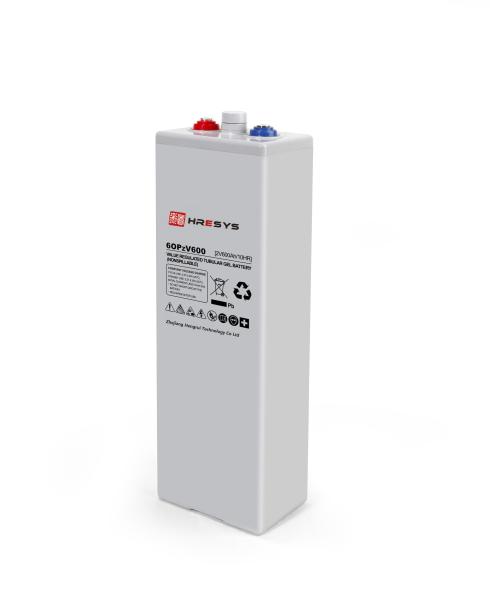

    2V 600AH Maintenance free OPzV Battery (Tubular Gel Type) for renewable energy storage, Telecom use, power utilities applications (Deep Cycling Life), L145mm x W206mm x H681mm


    • Product Overview

    HRESYS OPzV Series offers perfect performance, such as long design-life, maintenance free and high-level reliability etc. HRESYS OPzV series compliance with the DIN standard, IEC standard, Eurobat guide etc.

    OPzV Series is especially designed with robust die cast positive tubular plate and fumed gelled electrolyte. It widely applied in telecom power utilities, cyclic using, renewable energy storage applications at harsh working conditions.


    • Features and Benefits

    - Low density electrolyte reduce corrosion and enable long service life

    - Excellent deep discharge recovery capability

    - Compliance with Din standard

    - Low self-discharge rate and long shelf life (1 year at 25°C)

    - Wide operating temperature range from -40°C to 60°C

    - Tubular positive plate and fumed silica gel enables excellent deep cycle performance

    - 20 years design life at floating condition

    - Reliable maintenance-free and leakage-free construction


    • Applications

    o UPS

    o Telecom

    o Power Utility

    o Renewable energy


    • Complied standards
      • IEC 60896-21/22
      • DIN40472
      • IEC61427
      • YD/T1360
      • Eurobat guide, long life
      • BS6290 part 4

    • Management and Product Certificates
      • ISO9001:2015
      • ISO14001:2015
      • OHSAS18001:2007
      • CE Certificate

    • Product Specification​
    Nominal Voltage (V)2
    Designed floating life(25°C)20+ Years
    Nominal Capacity (25°C)600 Ah @ C10 (to 1.80Vpc)
    Max. Charge Current150 A
    Max. Discharge Current2000 A
    Short Circuit current4200 A
    Dimension (mm)L145mm x W206mm x H681mm
    Approx. Weight44.2 kg (97.4 lbs)
    Terminal TypeFemale Copper Insert M8(torque: 10~12N.m)
    Internal ResistanceApprox. 0.45 Ohm (fully charged)
    Float Charge Voltage2.23V/block @25℃
    Equalize Charge Voltage2.35V @25℃
    Self-DischargeApprox. 2.0% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -30~55 C
    Storage: -25~45 C
    Container MaterialABS UL (94-V0 optional)

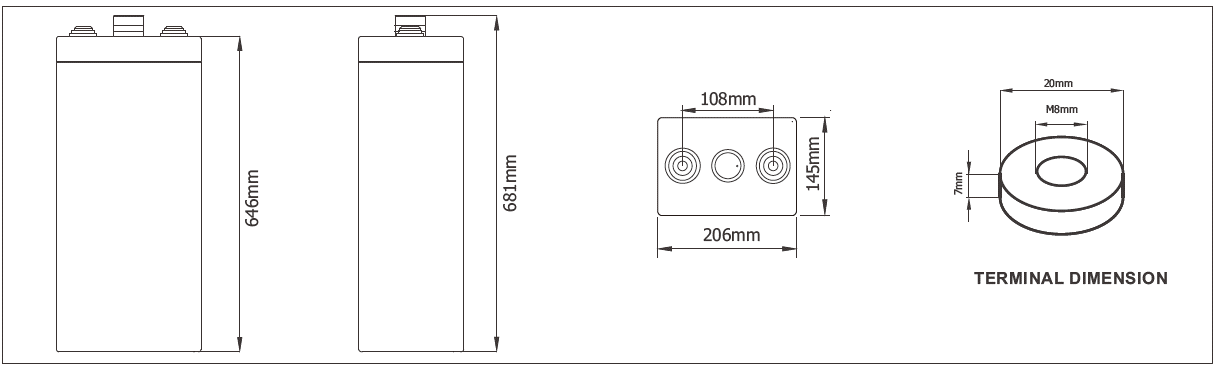

    • Battery Dimension
      • L145mm x W206mm x H681mm


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 1800 cycle at 800%DOD


    · Charge Characteristics
