Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge

    Buy cheap Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge from wholesalers

    Buy cheap Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge from wholesalers
    • Buy cheap Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge from wholesalers

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 2SCG2000
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge

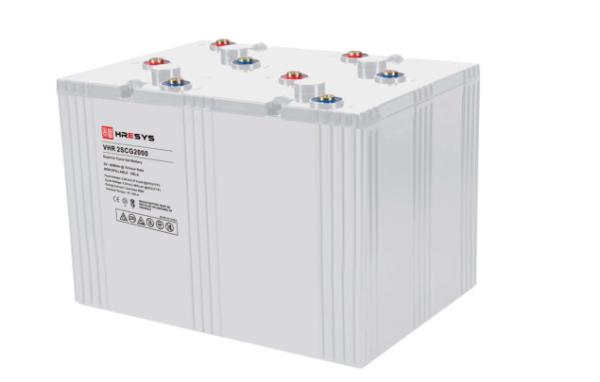

    2V 2000AH Gel Lead-acid Batteries for Energy Storage , L475mm x W335mm x H335mm


    • Product Overview

    HRESYS SCG Series Valve Regulated Lead Acid Gel Battery is specially designed for energy storage.

    Applications including renewable energy system, outdoor telecom and cycle application for harsh environment

    With international leading technologies and State-of-the-art automated manufacturing, SCG series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.


    • Product Specification​
    Nominal Voltage (V)2
    Nominal Capacity (25 C)2000 Ah@C10 (to 1.80Vpc)
    Dimension (mm)L475mm x W335mm x H335mm
    Approx. Weight117.5 kg (259 lbs.)
    Terminal TypeFemale Copper Insert M8
    Internal ResistanceApprox. 0.14mOhm (fully charged@ 20°C)
    Max. Charge Current500 A
    Self-DischargeApprox. 2.5% per month @ 20°C
    Ambient Temperature

    Discharge: -40~60°C

    Charge: -20~55 °C

    Storage: -20~45°C

    Float Charge Voltage2.25V/cell @25℃
    Equalize Charge Voltage2.35V/cell @25℃
    Container MaterialABS (UL94-V0 optional)

    • Applications

    o Renewable energy

    o Outdoor telecom

    o Mini Solar Power System

    o General Purpose

    o UPS

    o Energy Storage


    • Features and Benefits​

    - Long Cycle Life: 15 years long life design @ 25℃

    - Multi-purpose Application: The battery can be floating application as well as cyclic application

    - Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

    - High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable


    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Battery Dimension

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge


    • Performance Curves

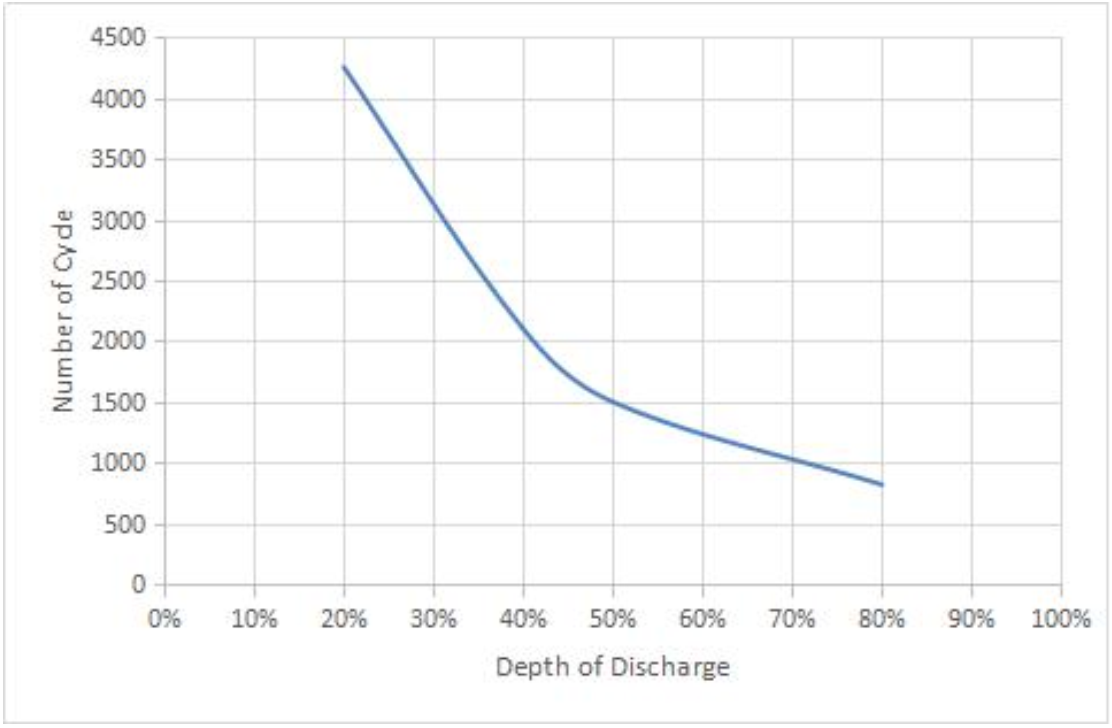

    Cyclic Characteristics

    High cycle performance: up to 820 cycle at 80%DOD


    • Charge/discharge Characteristics


    • Self-Discharge Characteristics

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge


    • Temperature Characteristics

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge

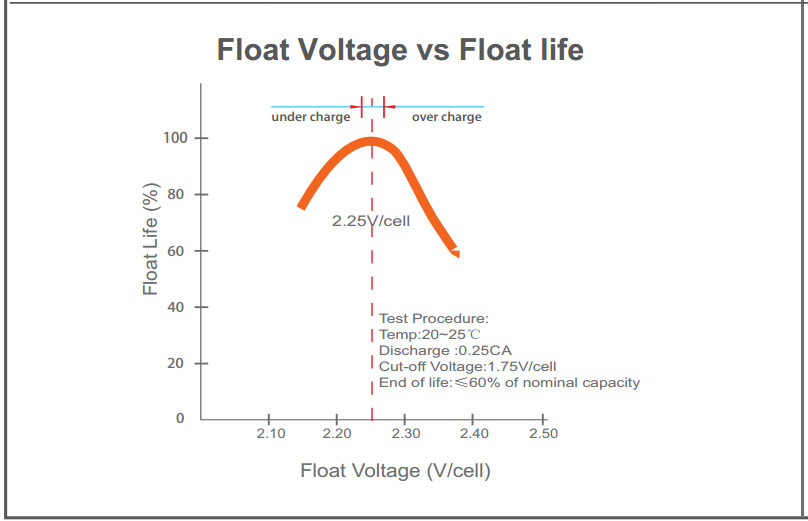

    • Float voltage VS float life

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge


    • Capacity VS temperature

    Gel Battery Electric Storage System 2000AH Long Cycle Life Low Self Discharge
