OPzV12-200 12V Tubular Gel Batteryfor Renewable Energy System , 499
x259 x 219 mm
HRESYS OPzV12-200 With the rubust die cast positive tubular plate
design and fumed gelled electrolyte, OPzV 12V series offers
excellent deep cycling life and high level reliability with 12
years design life. OPzV 12V series is ideal for use in renewable
energy system, telecom and other cyclic/standby harsh environment
applications.
OPzV series offer long cycle life , large current discharge
capability , high consistency.reliability and safety, and
environmental-friendly.
- Tubular positive plate and Fumed Silica gel gel electrolyte with
prolonged cycle life
low density electrolyte with fast charging
- Lead Calcium die cast grid with improved corrosion resistance
capability
- Excellent deep discharge recovery capability
- Reliable maintenance-free and leakage-free construction
- Wide operating temperature range from -40°C to 60°C
- Low self-discharge rate and long shelf life (1 year at 25°C)
- 12 years design life at floating condition
o Home & Mini Energy Storage System
o Microgrid / Off-grid Power System
o Solar Street Lights
o Telecommunication
o Uninterrupted Power Supply (UPS)
o Emergency Power Supply
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Nominal Capacity (25 C) | 200 Ah@10HR-rate (to 1.80Vpc) |

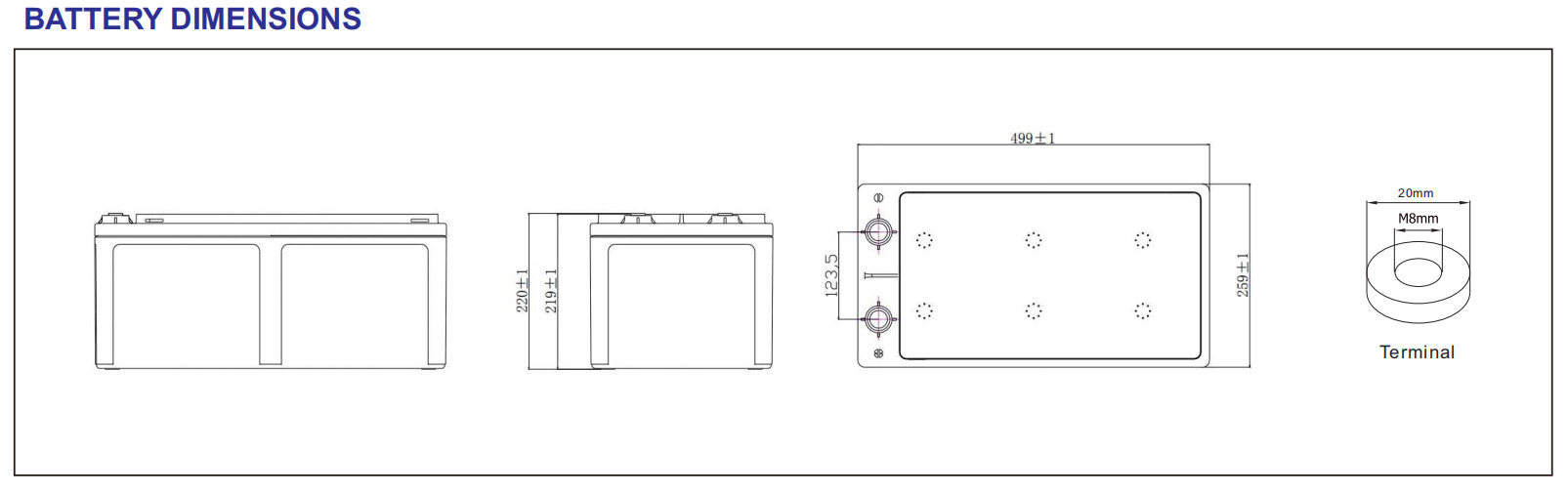

| Dimension (mm) | L499mm x W259mm x H219mm |
| Approx. Weight | 74 kg (163 lbs) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0005 Ohm (fully charged) |
| Self Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -20~55°C
Charge: -20~45 C
Storage: -20~45 C |
| Float Charge Voltage | 13.3 to 13.5V/block @25 C (-3mV/ cell/ C) |
| Cycle Use Charge Voltage | 14.1 to 14.4V/block @25 oC |
| Container Material | ABS UL ( 94-V0 optional) |
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
High cycle performance: up to 1000 cycle at 80%DOD
1) Cycle method: Total discharge is 80% DOD at customer practice
condition, charge with constant current and constant voltage
(CC-CV) mode, charge time shall be 10 - 12 hours at least. This is
one cycle.
