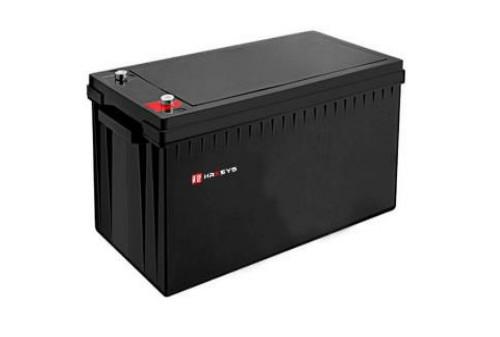

    200AH Safety Lithium Ion Motorcycle Battery 2560Wh 522 × 238 × 218 × 220mm

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR ES12200LFP
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    200AH Safety Lithium Ion Motorcycle Battery 2560Wh 522 × 238 × 218 × 220mm

    200AH High Capacity/ long cycle life Lifepo4 UPS/golf cart Lithium Ion Battery Pack


    • HRESYS Integrated Lithium-ion Battery

    ES-LFP Series Lithium-ion Battery is an ideal replacement for traditional

    lead acid battery utilizing advanced LiFePO4 technology and integrated

    BMS with the benefits of long cycle life, light in weight, safety and

    excellent high and low temperature performance. ES-LFP Series Lithium-

    ion Battery is widely used in energy storage, UPS, golf cart and other lead

    acid battery replacement


    • Superior Character

    1, Good performance under high and low temperature

    2, Good safety performance.

    3, Good cycle life time

    4, Good safety performance

    5, High Safety Ensured by Smart BMS.

    6, No pollution during manufacture.


    • Application

    Electric vehicle
    Golf cart
    Electric motorcycle
    Electric boat
    Electric forklift
    Telecommunication
    Distributed Grid Energy Storage system
    Mining equipment
    Solar energy storage system
    Marine
    Backup power
    Household energy storage system


    • Product Specification​
    Electrical Characteristics
    Nominal Voltage12.8V
    Nominal Capacity@0.2C204Ah
    Energy2560Wh
    Internal Resistance≤35m Ω
    Cycle Life≥3000 Cycles
    Months Self Discharge≤3.5% per month at 25℃
    Mechanical
    Cell & MethodIFR32700 N60, 4S34P
    Plastic CaseABS
    Dimension(L × W × H × TH)522 × 238 × 218 × 220mm
    WeightApprox. 27Kg
    TerminalM8
    Standard Charge
    Charge Voltage14.6 ± 0.2V
    Charge Mode(CC/CVAt 0℃~45℃ temperature, charged to 14.6V at a constant current of
    0.2C, and then charged continuously with constant voltage of
    14.6V until the current was not more than 0.02C.
    Charge Current40A
    Max. Charge Current100A
    Standard Discharge
    Discharge Current40A
    Max. Continuous Current100A
    Max. Pulse Current200A(<3S)
    Discharge Cut-off Voltage10.0V
    Operating Environment
    Charge Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
    Discharge Temperature—20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
    Storage Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
    Water Dust ResistanceIP55
    Protection Parameter
    Over-current Protection Current300A
    Over-charge Protection Voltage15.2V
    Over-discharge Protection Voltage9.2V
    High Temperature Protection65℃

    • Different Rate Discharge Curve

    Charge Characteristics @0.2C&0.5C, 25
