    Deep Cycle Residential Battery Storage Systems High Reliable OPzV 1200AH

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 12 OPzV 1200
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Deep Cycle Residential Battery Storage Systems High Reliable OPzV 1200AH

    2V 1200AH Tubular Gel OPzV High Reliable & Deep Cycle-Life Battery for renewable energy storage, Telecom use, power utilities applications, L275mm x W210mm x H681mm


    • Product Overview

    With specially designed robust die cast positive tubular plate and fumed gelled electrolyte. HRESYS OPzV Series fit perfectly in telecom power utilities, cyclic using, renewable energy storage applications at harsh working conditions.

    HRESYS OPzV Series battery has powerful performance like, long cycle-life, maintenance free and high-level reliability with 20 years design life etc. HRESYS OPzV series complied DIN standard, IEC standard, Eurobat guide etc.


    • Features and Benefits

    - Low density electrolyte reduce corrosion and enable long service life

    - Reliable maintenance-free and leakage-free construction

    - Excellent deep discharge recovery capability

    - Low self-discharge rate and long shelf life (1 year at 25°C)

    - Wide operating temperature range from -40°C to 60°C

    - Tubular positive plate and fumed silica gel enables excellent deep cycle performance

    - Compliance with Din standard

    - 20 years design life at floating condition


    • Applications

    o Renewable energy

    o Telecom

    o UPS

    o Utility


    • Complied standards
      • IEC 60896-21/22
      • DIN40472
      • IEC61427
      • YD/T1360
      • Eurobat guide, long life
      • BS6290 part 4

    • Management and Product Certificates
      • ISO9001:2015
      • ISO14001:2015
      • OHSAS18001:2007
      • CE Certificate

    • Product Specification​
    Nominal Voltage (V)2
    Designed floating life(25°C)20+ Years
    Nominal Capacity (25°C)1200 Ah @ C10 (to 1.80Vpc)
    Max. Charge Current300 A
    Max. Discharge Current2500 A
    Short Circuit current7400 A
    Dimension (mm)L275mm x W210mm x H681mm
    Approx. Weight87 kg (192 lbs)
    Terminal TypeFemale Copper Insert M8(torque: 10~12N.m)
    Internal ResistanceApprox. 0.26 Ohm (fully charged)
    Float Charge Voltage2.23V/block @25℃
    Equalize Charge Voltage2.35V @25℃
    Self-DischargeApprox. 2.0% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -30~55 C
    Storage: -25~45 C
    Container MaterialABS UL (94-V0 optional)

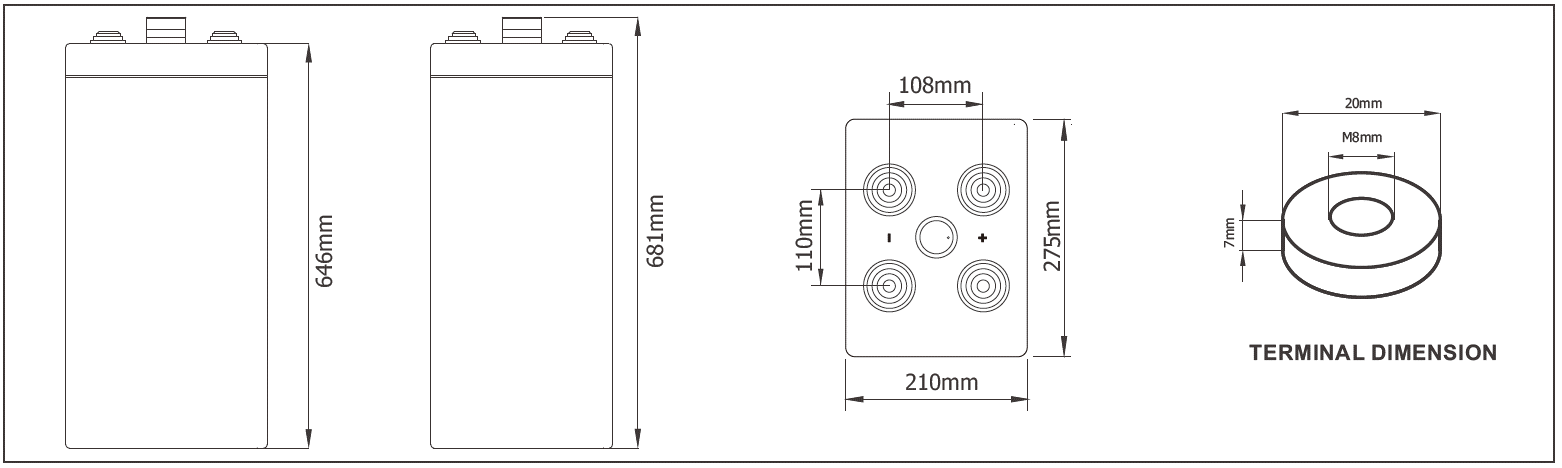

    • Battery Dimension
      • L275mm x W210mm x H681mm


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 1800 cycle at 800%DOD


    · Charge Characteristics
