    Commercial Residential Battery Storage Systems 38Ah - 250Ah High Cyclic Performance

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 12SCG100
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Commercial Residential Battery Storage Systems 38Ah - 250Ah High Cyclic Performance

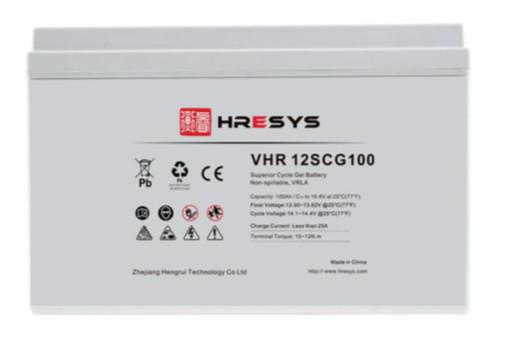

    12 V 100 AH Superior Cycle Gel Lead-acid Batteries for High Cycle Required Applications, L330mm x W174mm x H220mm


    • Product Overview

    HRESYS SCG series battery is mainly used for solar and cyclic applications, which is novel in design, reasonable in structure and occupying the leading position in the same industry of the world. This SCG series is designed with the newly developed nano gel electrolyte which can prevent water loss and resist thermal runaway. It’s design life is up to 12+ years.


    • Features and Benefits​

    · Available from 38Ah to 250Ah

    · Robust design for multiple applications

    · Thick plate with excessive active material enables excellent cyclic performance

    · Wide operation temperature range for multiple working scenarios


    • Working Scenarios

    · Batteries can be working in many occasions, i.e. solar, energy storage, telecom, power utilities, UPS, etc.

    · Batteries are normally used in cyclic applications with frequent cycles

    · Guarantee is normally provided differently due to different working scenarios


    • Applications

    o Home & Mini Energy Storage System

    o Telecommunications

    o Uninterrupted Power Supply (UPS)

    o Microgrid / Off-grid Power System

    o Solar Street Lights

    o Emergency Power Supply

    o Power Utilities


    • Complied standards

    o IEC 60896-21/22

    o GB/T 19638

    o IEC61427

    o JIS C8704

    o BS6290 part 4


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Product Specification​

    Nominal Voltage (V)12 (6 cells per unit)
    Nominal Capacity (25 C)100 Ah@ 10HR-rate (to 1.80Vpc)
    Dimension (mm)L330mm x W174mm x H220mm
    Approx. Weight28.1 kg (61.9 lbs)
    Terminal TypeF-M6 or cable (torqure:6-8N.m for F-M6)
    Internal ResistanceApprox.0.005 Ohm (fully charged @ 20℃)
    Max. Charge Current25A
    Max. Discharge Current (5S)800A
    Short Circuit Current2600A
    Self DischargeApprox. 2.5% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -20~55 C
    Storage: -25~45 C
    Float Charge Voltage13.5~13.62V/block @25℃
    Equalize & Cycle Use Charge Voltage14.1~14.4V/block @25℃
    Container MaterialABS(UL94-V0 optional)

    • Battery Dimension


    • Performance Curves
