    9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle

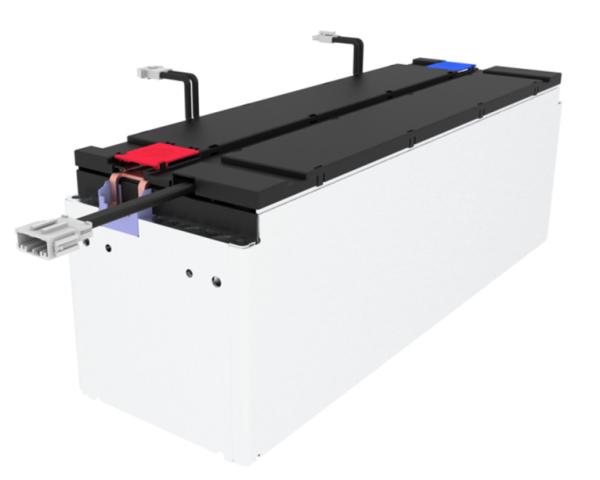

    1. 9.6V 400Ah LITHIUM ION(LFP) electrical vehicles BATTERY Module W: 423.5mm X D: 177.3mm X H: 203.0mm


    • Product Features

    HRESYS Commercial Electrical Vehicle Lithium-ion Battery utilizes advanced LFP technology and high reliable integrated structure to ensure the benefits of long cyclic life, high energy density, compact size and weight, high safety and reliability, and environment friendly as well. The 9.6V Lithium Ion Battery Pack is mainly working as 9.6V DC power source, and it consists of 3S4P cells of Lithium Iron Phosphate Battery Cells connected in series. HRESYS VDA-LFP Lithium-ion Battery is widely used in Commercial electrical vehicles,low speed electrical cars, electrical cargo vans etc.


    • Product Specification​
    ItemSpecificationRemarks
    Nominal Capacity400AhStandard discharge capacity after standard charge
    Actual Capacity420AhActual testing results according to the Standard discharge
    Nominal Voltage9.6VConfiguration: 3S4P - VHR 32173184LFP-100Ah. Voltage of single cell is 3.2V
    Voltage at End of Charge10.8V@ 25 ± 3℃
    Nominal Continuous Charge Current(CC Threshold)150A@ 25 ± 3℃
    Voltage at End of Discharge7.8V@ 25 ± 3℃
    Nominal Continuous Discharge Current(CC Threshold)200A@ 25 ± 3℃
    Maximum Continuous Charge Current (CC Threshold)200A@ 25 ± 3℃
    Peak-Charge (50%SOC 10s)350A@ 25 ± 3℃
    Charge Voltage-cell3.60V/cellN.A.
    Maximum Continuous450A@ 25 ± 3℃
    Discharge Current
    Peak-Discharge (50%SOC 10s)500A@ 25 ± 3℃
    Voltage at End of Discharge-cell2.60V/cell 0~60℃N.A.
    2.50V/cell -20~0℃
    Operation AllowableCharge: 0~60°CN.A.
    Temperature RangeDischarge: -20℃~60°CN.A.
    Continuous Discharge Power1.92KW50%SOC
    Continuous Charge Power0.8KWN.A
    Self-discharge Rate/Month≤4%@ 25 ± 3℃,100%SOC
    Cycle Life(cycles)≥5000@ 25 ± 3℃,0.2C/0.5C @80%DOD
    Operation Allowable≤95% RHOperation
    Humidity Range≤85% RHStorage
    Recommended0~40°CMax. 6 month/50%SOC
    Storage temperature and SOC
    Weight31.5(±2)kgN.A.

    • Dimension

    9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle

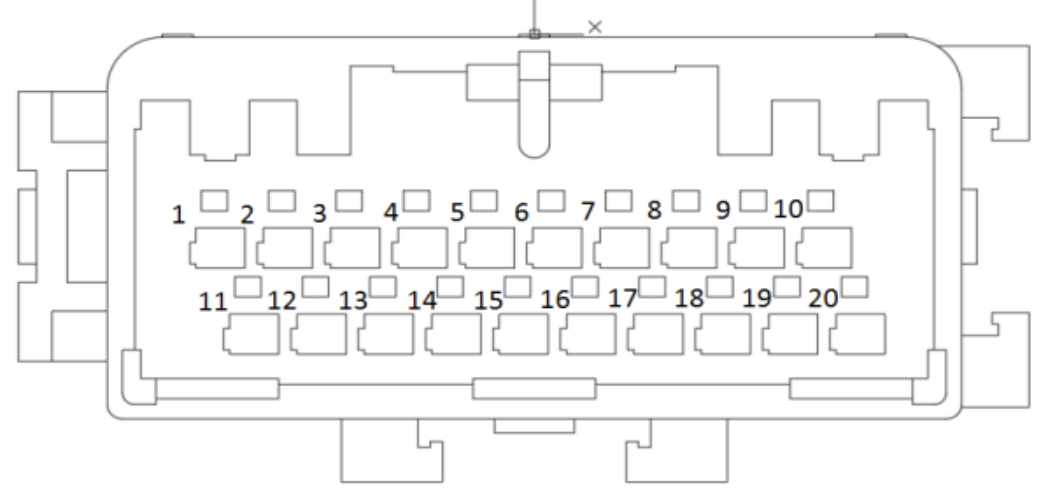

    • The Interface Definition
    Hole locationHole location definedfunction definitionMAX.Current (A)
    1CV0Cell1-/B-3
    2CV1Cell1+/Cell2-3
    3CV2Cell2+/Cell3-3
    4CV3Cell3+/B+3
    17T1
    18T2
    19T3temperature acquisition
    20T4


    • R&D Ability and Testing Facilities
    1. Industry Leading R&D Team
    2. Over hundreds of High Level Engineers working in Li-Ion Battery and VRLA Battery product development
    3. 60% of engineers have possessed Master/Doctor degree
    4. External Consultant/Expert supporting innovation
