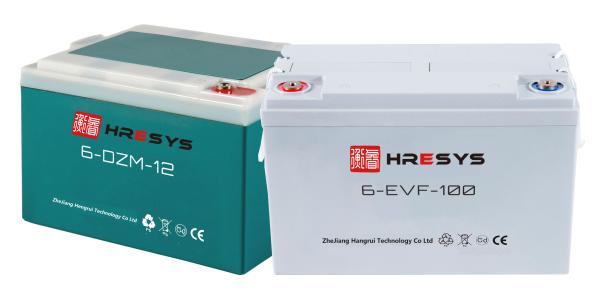

12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12

    Buy cheap 12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12 from wholesalers

    Buy cheap 12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12 from wholesalers
    • Buy cheap 12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12 from wholesalers

    12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 6-DZM-12
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    12AH VRLA Gel EV Battery Pack For Motive Power Applications 6-DZM-12

    12 V 12 AH VRLA Gel Battery for motive power applications, 6-DZM-12, L151mm x W100mm x H99mm


    • Product Overview

    HRESYS DZM series VRLA Gel Battery is specially designed for motive power applications including electric bikes/scooters, electric tricycles, electric motocycles and other device require DC power source. With international leading technologies and State-of-the-art automated manufacturing, DZM series offer long cycle life, large current discharge capability, high consistency, reliability and safety, and environmental-friendly.


    • Features and Benefits​

    • Long Cycle Life: Exceptional cyclic performance above 600 cycles @80% DoD.
    • Reliable Seal Structure: Mount in any position except inverted
    • Optimal Design: Besides the benefits of VRLA battery, it is maintainable that can prolong the service life by up to 50%-100% or more.
    • Multi-purpose Application: The battery can be floating application as well as cyclic application.
    • Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge and low water- loss.
    • High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable.

    • Applications

    • Electric Bike / Scooters
    • Electric Tricycles
    • Electric Tools and Toys
    • Mini Solar Power System

    • Product Specification​

    Nominal Voltage (V)12 (6 cells per unit)
    Nominal Capacity (25 C)12 Ah @ 2HR-rate (to 1.75Vpc)
    Dimension (mm)L151mm x W100mm x H99mm
    Approx. Weight4.20 kg (9.26 lbs)
    Terminal TypeFemale Copper Insert M5
    Internal Resistance≤ 0.016 Ohm (fully charged)
    Initial Charge Current≤2.0A
    Self DischargeApprox. 2.0% per month @ 20°C
    Ambient TemperatureDischarge: -20~55°C
    Charge: -20~45 °C
    Storage: -20~45°C
    Float Charge Voltage13.5~13.8V/block @25 C
    Сycle Use Charge Voltage14.7~14.9V/block @25 C
    Container MaterialABS (UL94-V0 optional)

    • Complied standards

    • IEC 61056-1
    • GB/T 22199
    • JIS C8702-1
    • GB/T 19639-1


    • Management and Product Certificates

    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate

    • Battery Dimension


    • CHARACTERISTICS
