    19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR VDA19300LFP
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density

    1.19.2V 300Ah LITHIUM ION(LFP) electrical vehicles BATTERY Module W: 579.5mm X D: 177.5mm X H: 203.0mm


    • Product Features

    HRESYS Commercial Electric Vehicle Lithium-ion Battery utilizes advanced LFP technology and high reliable integrated structure to ensure the benefits of long cyclic life, high energy density, compact size and weight, high safety and reliability, and environment friendly as well. The 19.2V Lithium Ion Battery Pack is mainly working as 19.2V DC power source, and it consists of 6S2P cells of Lithium Iron Phosphate Battery Cells connected in series. HRESYS VDA-LFP Lithium-ion Battery is widely used in Commercial electrical vehicles,low speed electrical cars, electrical cargo van etc.


    • Product Specification​
    No.ItemSpecificationRemarks
    1.6.1Nominal Capacity300AhStandard discharge (1) capacity after standard charge (2)
    1.6.2Actual Capacity310AhActual testing results according to the Standard discharge
    1.6.3Nominal Voltage19.2VConfiguration: 6S2P - VHR 32173184LFP-150Ah. Voltage of single cell is 3.2V.
    1.6.4Voltage at End of Charge21.6V@ 25 ± 3℃
    1.6.5Voltage at End of Discharge15.6V@ 25 ± 3℃
    1.6.6Nominal Continuous Charge Current (CC Threshold)150@ 25 ± 3℃
    1.6.7Nominal Continuous175@ 25 ± 3℃
    Discharge Current
    1.6.8Maximum Continuous Charge Current (CC Threshold)200A@ 25 ± 3℃
    1.6.9Peak-Charge (50%SOC 10s)450A@ 25 ± 3℃
    1.6.10Charge Voltage-cell3.60V/cellN.A.
    1.6.11Maximum Continuous350A@ 25 ± 3℃
    Discharge Current
    1.6.12Peak-Discharge (50%SOC 10s)550A@ 25 ± 3℃
    1.6.13Voltage at End of Discharge-cell2.60V/cell 0℃~60℃N.A.
    2.50V/cell -20℃~0℃
    1.6.14Operation AllowableCharge: 0~60°CN.A.
    Temperature RangeDischarge: -20~60°CN.A.
    1.6.15Continuous Discharge Power1.92KW50%SOC
    1.6.16Continuous Charge Power0.8KWN.A
    1.6.17Self-discharge Rate/Month≤4%@ 25 ± 3℃,50%SOC
    1.6.18Cycle Life(cycles)≥5000@ 25 ± 3℃,0.2C/0.5C @80%DOD
    1.6.19Operation Allowable≤95% RHOperation
    Humidity Range≤85% RHStorage
    1.6.20Recommended0~40°CMax. 6 month
    Storage temperature
    1.6.21Weight43(±2)kgN.A.

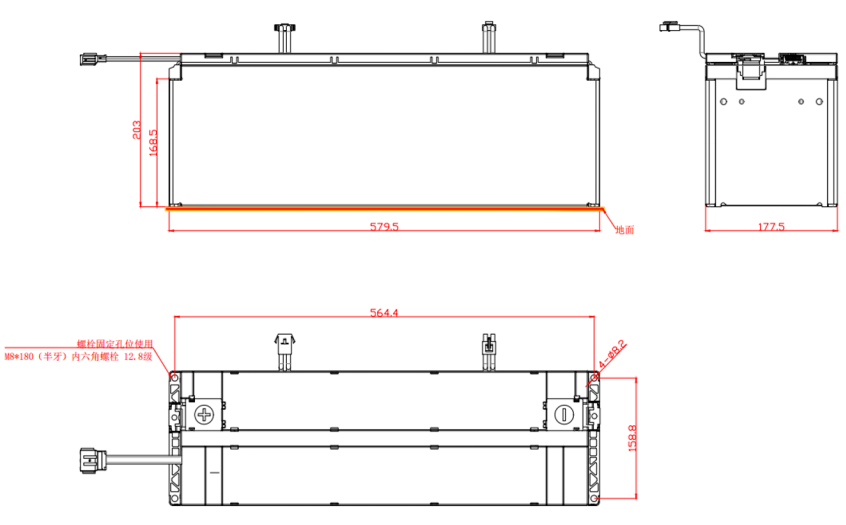

    • Dimension
    Model No.Nominal VoltageNominal CapacityActualDimensionWeightMaterialWelding Manner
    Capacity(W X D X H, mm)
    VHR VDA19300LFP19.2V300Ah310AhWidth:579.5mm (±2)43(±2)kgAluminumLaser welding
    Depth: 177.5mm (±2)
    Height: 203.0mm (±2)

    Hole locationHole location definedfunction definition
    1Power output+/
    2Power output-/


    • Storage

    The battery storage shall be in the clean and dry ventilation room at the temperature of 0~40°C at 50%~60%SOC and shall keep out of fire or heat and avoid touching corrosion elements. The batteries shall be charged every 8 or 12 months (0 ~ 30℃ - 12month, 30 ~ 40℃ - 8 month) during storage.


    • Cautions
    1. Please read the user manual carefully before using the lithium ion battery.
    2. No human body shall direct contact the positive/negative poles at the same time if the battery’s voltage exceeds 36V safety voltage.
    3. Please read the specific charging device’s user manual carefully before charging.
    4. When the battery is not charged after long exposure to the charger, discontinue charging.
    5. Please check the positive (+) and negative (-) direction before connection.
    6. Battery must be stored in a dry area with low temperature (≤25°C) environment for long-term storage.
    7. Do not expose the battery in direct sunlight or heat.
    8. Do not use the battery in high static energy environment where the protection device can be damaged.
    9. When rust or smell is detected on first use, please return the product to the seller immediately.
    10. Keep the battery out of reach of children and pets.
    11. When battery life span shortens after long period of usage, please exchange to new battery.
    12. No metal objects (rings, watches, and other metal accessories, etc.) can be worn during the handling of battery.
    13. Charge time should not be longer than specified in the manual.
    14. Do not expose the battery out of the temperature range specified in the specification.
