    6-EVF-68 High Capacity EV Battery Pack Eco Friendly High Temperature Resistant

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 6-EVF-68
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

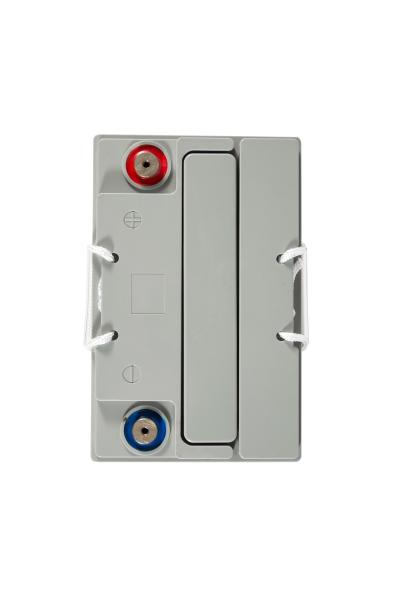

    6-EVF-68 High Capacity EV Battery Pack Eco Friendly High Temperature Resistant

    6-EVF-68 EVF series VRLA AGM+Gel Battery for electric vehicles , 262 x168 x 215 mm


    • Product Overview

    HRESYS EVF ety and Eco-friendly performance. For example electeic tricycle, Golf car, sighteening bus, Sanitation truck, Ground vehicle.

    Including electric tricycles, electric automobiles, special electric vehicle and other devices require DC power source. With leading technologies and state-of-the-art automated manufacturing​


    • Features and Benefits​

    - Extreme shock and vibration resistance

    - Advanced VRLA AGM+Gel technology - more power in less space

    - Exceptional cyclic performance above 400 cycles @100% DoD

    - Maintenance free - no water addition required

    - Eco-friendly performance; minimal gassing

    • Applications

    o Golf cart

    o Electric tricycle

    o Electric automobile

    o Sanitation truck

    o Fork-lift etc

    o Sightseeing bus


    • Product Specification
    Nominal Voltage (V)12 (6 cells per unit)
    Nominal Capacity (25 C)68 Ah@3HR-rate
    Dimension (mm)L262 xW168 x H215mm
    Approx. Weight23.8 kg
    Terminal TypeFemale Copper Insert M6
    Internal Resistance
    Self Discharge
    Ambient TemperatureDischarge: -20~55°C
    Charge: -20~45 C
    Storage: -20~45 C
    Float Charge Voltage2.27V/cell - 2.30V/cell @25℃
    Cycle life≥ 400 cycles @ 100% DOD
    Container MaterialABS UL ( 94-V0 optional)

    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Battery Dimension
      • Discharge and Charge Conditions (80%DOD, 20 to 25℃)

    (1) Cycle method: Discharge with 2I10 for 4 hours (80% DOD), charge with 2I10 for 3.5hour + I10 for 1hour + 0.25I10 for 3.5hour. This is one cycle.


    (2) Residue Capacity determination: The batteries are discharged at 10 hour rate after every 50 cycles to test battery capacity. When residue capacity of 10 hour rate capacity is lower than 80%, test is ended. After discharge at 10 hour rate after every 50cycles, the charge method is: charge 80% of discharged capacity with current of 2I10 + charge 20% with current of I10 + charge 20% with current of 0.4I10 (i.e. charge 120% of discharged capacity)


    • Performance Curves
