Brand Name : | HRESYS |
Model Number : | VHR 12GT18 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 1800000 PCS/YEAR |
Delivery Time : | 30 DAYS |
12 V 18 AH Top Terminal VRLA AGM Battery for General Purpose , L181mm x W76mm x H170mm

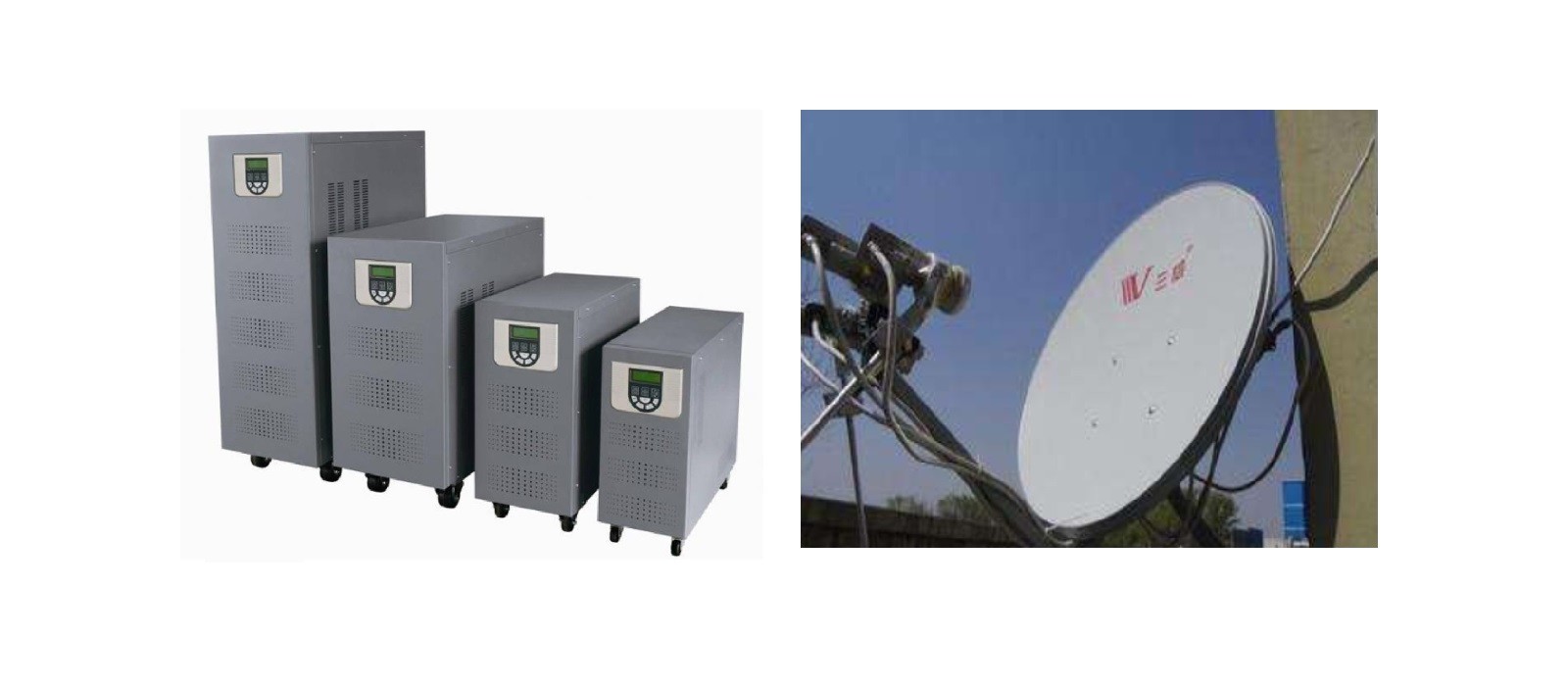

HRESYS GT series is Top terminal Valve Regulated Lead Acid AGM technology battery, which has high energy density and high reliability performance, highly suited for Uninterrupted Power Supply systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.
Nominal Voltage (V) | 12 |
Designed Floating Life (25℃) | 5 Years |
Nominal Capacity (25℃) | 18 Ah@ C20 (to 1.75Vpc) |

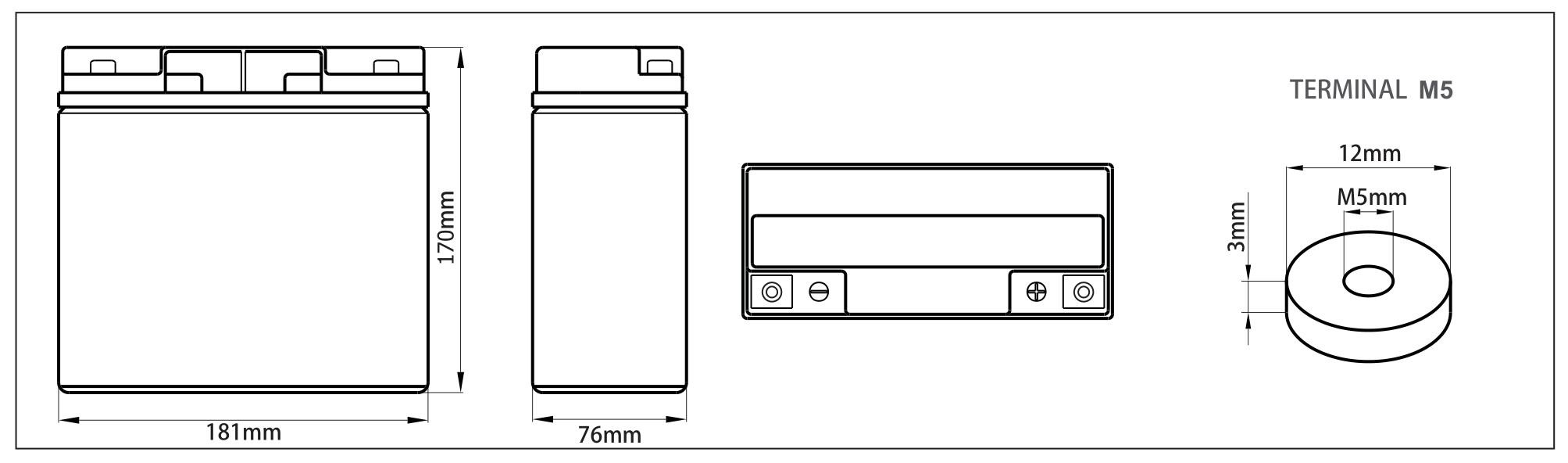

Dimension (mm) | L181mm x W76mm x H170mm |
Approx. Weight | 5.2 kg (11.5 lbs) |
Terminal Type | Female Copper Insert M5 |
Internal Resistance | ≤ 0.013m Ohm (fully charged @25℃) |
Max. Charge Current | 5.4 A |
Max. Discharge Current(5S) | 300 A |
Short Circuit Current | 800 A |
Self Discharge | Approx. 2.5% per month @ 20℃ |
Ambient Temperature | Discharge: -20~55℃ Charge: -20~50℃ Storage: -20~45℃ |
Float Charge Voltage | 13.6V @25℃ |
Equalize Charge Voltage | 14.4V @25℃ |
Container Material | ABS (UL94-V0 optional) |
o IEC 60896-21/22
o GB/T 19638
o IEC61427
o JIS C8704
o BS6290 PART4
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
![]() |
