12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

    Buy cheap 12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm from wholesalers

    Buy cheap 12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm from wholesalers
    • Buy cheap 12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm from wholesalers

    12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 12GT9
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm

    12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm


    • Product Overview

    HRESYS GT series Valve Regulated Lead Acid AGM technology Battery is specially designed for telecommunication, utilities, ups systems and emergency light system and other general purpose applications.12V series available from 7Ah to 250Ah.With advanced manufacturing technique and industry scale, GT series delivers high energy density and high reliability performance.


    • Features and Benefits​
    1. 10 years design floating life at 25°C
    2. Standard sizes for general purpose
    3. Flexible design for multiple installation space
    4. Low self-discharge rate
    5. Self-regulating pressure relief valve with flame arrester
    6. Maintenance free and easy to install

    • Applications
    1. Electric Tools and Toys
    2. Cable Television
    3. Uninterrupted Power Supply(UPS)
    4. Emergency Power Supply

    • Working Scenarios
    1. Batteries are mainly working as backup power with not many cycles
    2. Backup time normally doesn’t exceed 2 hours
    3. Shadow cyclic use and cycles not many

    12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm


    • Complied standards

    o IEC 60896-21/22

    o GB/T 19638

    o IEC61427

    o JIS C8704

    o BS6290 PART4


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Product Specification
    Nominal Voltage (V)12
    Designed Floating Life (25℃)5 Years
    Nominal Capacity (25℃)9 Ah@ C20 (to 1.75Vpc)
    Dimension (mm)L151mm x W65mm x H101mm
    Approx. Weight2.6 kg (5.7 lbs)
    Terminal TypeFasten Tab F2
    Internal Resistance≤ 0.020m Ohm (fully charged @25℃)
    Max. Charge Current2.7 A
    Max. Discharge Current(5S)135 A
    Short Circuit Current720 A
    Self DischargeApprox. 2.5% per month @ 20℃
    Ambient TemperatureDischarge: -20~55℃
    Charge: -20~50℃
    Storage: -20~45℃
    Float Charge Voltage13.6V @25℃
    Equalize Charge Voltage14.4V @25℃
    Container MaterialABS (UL94-V0 optional)

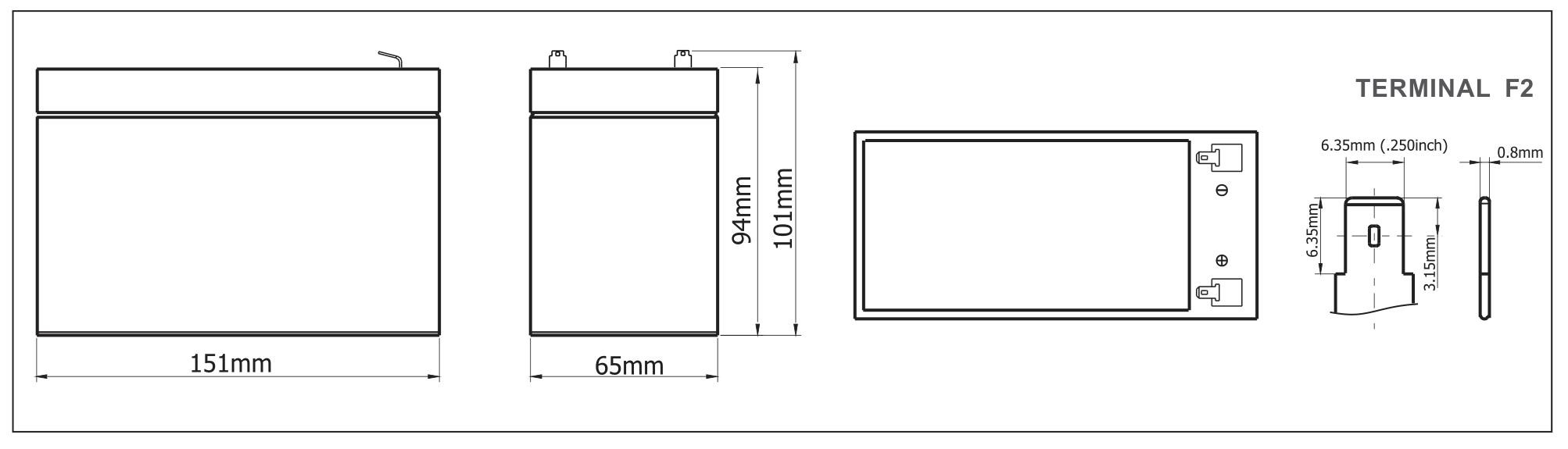

    • Battery Dimension

    12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm


    • Performance Curves

    12 V 9 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H101mm
