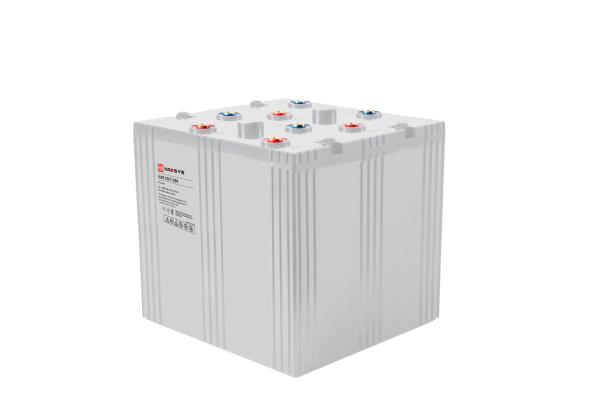

2V 1500 AH Top Terminal VRLA Agm Lead Acid Battery L170mm X W105mm X H340mm

    Buy cheap 2V 1500 AH Top Terminal VRLA Agm Lead Acid Battery L170mm X W105mm X H340mm from wholesalers

    Buy cheap 2V 1500 AH Top Terminal VRLA Agm Lead Acid Battery L170mm X W105mm X H340mm from wholesalers
    • Buy cheap 2V 1500 AH Top Terminal VRLA Agm Lead Acid Battery L170mm X W105mm X H340mm from wholesalers

    2V 1500 AH Top Terminal VRLA Agm Lead Acid Battery L170mm X W105mm X H340mm

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 2GT1500
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    2V 1500 AH Top Terminal VRLA Agm Lead Acid Battery L170mm X W105mm X H340mm

    2V 200 AH Top Terminal VRLA AGM Battery for General Purpose, L170mm x W105mm x H340mm


    • Product Overview

    HRESYS GT VRLA AGM series is Top terminal battery for General use. With

    advanced manufacturing technique and industry scale, GT series delivers

    high energy density and high reliability performance, highly suited for UPS

    systems, security and alarm systems, telecommunication, utilities, emergency

    light systems, and other backup applications.


    • Features and Benefits

    • 12+ years design floating life at 25°C (77°F)
    • Valve Regulated Lead Acid AGM technology
    • High energy density and high reliability performance
    • Standard sizes for general purpose
    • Flexible design for multiple installation space
    • Low self-discharge rate
    • Self-regulating pressure relief valve with flame arrester

    • Applications

    • UPS
    • EPS
    • IDC
    • Emergency lighting


    • Complied standards
      • IEC 60896-21/22
      • GB/T19638
      • JIS C8704
      • BS6290 part 4

    • Management and Product Certificates
      • ISO9001:2015
      • ISO14001:2015
      • OHSAS18001:2007
      • CE Certificate

    • Product Specification​
    Nominal Voltage (V)12 (6 cells per unit)
    Designed Floating Life (20°C)5 Years
    Power (25°C)24W/cell 15min, to 1.67Vpc)
    Dimension (mm)L151 x W65 x H194 x TH101
    Approx. Weight2.1kg(4.64lbs)
    Terminal TypeFasten Tab F2
    Internal ResistanceApprox. 0.025 Ohm (fully charged @ 20° C)
    Max. Charge Current/ Max. Discharge Current(5S)

    1.5 A/

    100 A

    Ambient TemperatureDischarge: -20~55°C
    Charge: -20~50°C
    Storage: -20~50°C
    Float Charge Voltage13.5~13.8V/block @25℃
    Equalize and cycle Use Charge Voltage14.4V/block @25 C
    Container MaterialABS UL94 F-V0)

    • Battery Dimension

    • Performance Curves
      • Cyclic Characteristics

    High cycle performance: up to 550 cycle at 80%DOD
