12 V 100 AH Innovation Cyclic Front Access Battery, L370mm x W125mm
x H291mm
The CF series is high cycle front terminal VRLA battery in both
cycle and float applications even in
hottest and harshest environment. By combining innovative
horizontal plate design with up-to-date
AGM technology, the CF series delivery high cycle and long float
life performance. True front access
connection and centralized venting system of CF series for fast,
safety installation and maintenance
- Innovative horizontal plate structure
- Overcome acid stratification issue
- Overcome pressure loss issue
- 3x cycle life of conventional AGM battery
- Suit for 23" and ETSI power racks/cabinets with front terminal
- High safety and reliability
- 15 years design float life at 20℃
- True front-terminal design -Not requiring any additional top
space
- Enhanced container with reinforce ribs design-Suit for hottest
operating environment
- Ideal for cycling application where unstable grid power supply or
no-grid, such as Telecom BTS,
hybrid genset, renewable energy storage
- Main feature-3D plate design
- Main feature - fast charge

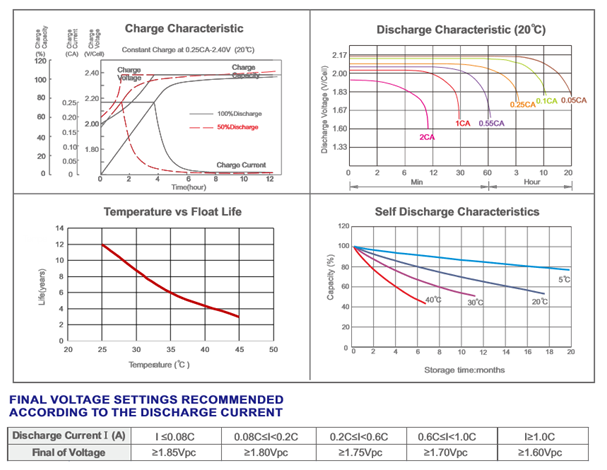

VHR 12CF100 Charge/Discharge Curve
fast charge:
CF can be fast can with 4h with 0.3C at 60% DOD
CF battery Charge current with 0.2C large Charge current ,neet
approx.5h to get fully
charge to battery with 80% DOD; 4h for battery with 60% DOD
- Main feature - large current discharge
- Applications
- Unstable-grid or off-grid site application --- require cycle, high
temperature, fast charge performance
- Southeast Asia, South Asia and Africa site
- Generator-battery Hybrid system
- Replace flat plate gel battery, normal AGM battery
- Harsh conditions UPS application---cycle performance
- Southeast Asia, South Asia, Africa and other regions
- Main backup time ＞30min
- Energy Storage System --- cycle (high temperature)
- Home energy system • Solar street lamps
- AGV(Automated Guided Vehicle)---cycle performance
- Automated Guided Vehicle, daily deep cycle application, 24~48V
system
- Complied standards
- IEC 60896-21/22
- GB/T19638
- YD/T 799
- JIS C8704
- BS6290 part 4
- Management and Product Certificates
- ISO9001:2015
- ISO14001:2015
- OHSAS18001:2007
- CE Certificate
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Nominal Capacity (25 C) | 100 Ah @ 10HR-rate (to 1.80Vpc) |
| Dimension (mm) | L370mm x W125mm x H291mm |
| Approx. Weight | 32.6 kg (71.9 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.005 Ohm (fully charged) |
| Initial Charge Current | ≤3.0 A |
| Max. Charge Current | 25 A |
| Max. Discharge Current (5S) | 800 A |
| Short Circuit Current | 2000 A |
| Self Discharge | Approx. 2.5% per month @ 20℃ |
| Ambient Temperature | Discharge: -20~60℃
Charge: -20~55℃
Storage: -20~45℃ |
| Float Charge Voltage | 13.5V/block @25℃(-3mV/ cell/ C) |
| Cycle Use Charge Voltage | 14.1V/block @25℃ |
| Container Material | ABS UL ( 94-V0 optional) |
