12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate

    Buy cheap 12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate from wholesalers

    Buy cheap 12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate from wholesalers
    • Buy cheap 12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate from wholesalers

    12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 12GT12
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate

    12 V 12 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm


    • Product Overview

    HRESYS General Purpose AGM Battery was defined as GT series battery. Certainly, GT series battery was designed by AGM ( Absorbed Glass Mat ), it has high energy density and high reliability performance, standard sizes for general purpose, highly suited for telecommunication, utilities, emergency light systems, UPS systems, security and alarm systems, and etc.


    • Features and Benefits​
    1. Design life at 25°C (77°F): 5 years for <38Ah, 10 years for 38Ah
    2. 12V series available from 7Ah to 250Ah
    3. Flexible design for multiple installation space
    4. Low self-discharge rate
    5. Self-regulating pressure relief valve with flame arrester
    6. Maintenance free by valve regulated

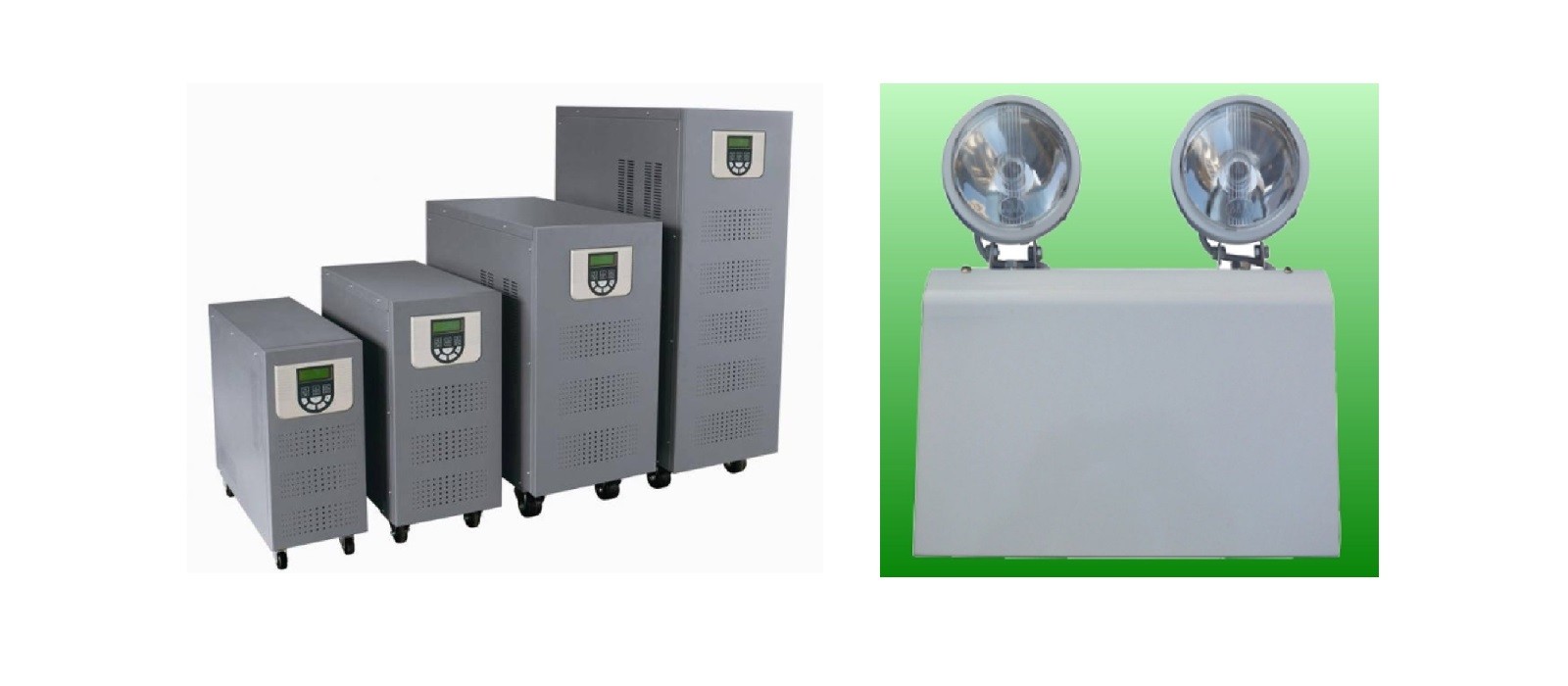

    • Applications
    1. Uninterrupted Power Supply(UPS)
    2. Emergency Power Supply
    3. Electric Tools and Toys
    4. Cable Television

    • Working Scenarios
    1. Working as backup power with not many cycles and shadow cyclic use
    2. Backup time normally doesn’t exceed 2 hours

    12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate


    • Product Specification
    Nominal Voltage (V)12
    Designed Floating Life (25℃)5 Years
    Nominal Capacity (25℃)12 Ah@ C20 (to 1.75Vpc)
    Dimension (mm)L151mm x W98mm x H101mm
    Approx. Weight3.68 kg (8.11 lbs)
    Terminal TypeFasten Tab F2
    Internal Resistance≤ 0.019m Ohm (fully charged @25℃)
    Max. Charge Current3.6 A
    Max. Discharge Current(5S)180 A
    Short Circuit Current630 A
    Self DischargeApprox. 2.5% per month @ 20℃
    Ambient TemperatureDischarge: -20~55℃
    Charge: -20~50℃
    Storage: -20~45℃
    Float Charge Voltage13.6V @25℃
    Equalize Charge Voltage14.4V @25℃
    Container MaterialABS (UL94-V0 optional)

    • Complied standards

    o IEC 60896-21/22

    o GB/T 19638

    o IEC61427

    o JIS C8704

    o BS6290 PART4


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Battery Dimension

    12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate


    • Performance Curves

    12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate
