    28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR CES28300LFP
    Certification : CE/UL
    Price : Negotiable
    Delivery Time : 30 DAYS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    • Product Details
    • Company Profile

    28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

    1.28V 300Ah LITHIUM ION(LFP) BATTERY Module W: 482.0 mm X D: 555.0 mm X H: 220.0mm


    • Product Overview

    HRESYS Commercial Energy Storage Lithium-ion Battery utilizes advanced LFP technology and high reliable integrated BMS to ensure the benefits of long cyclic life, high energy density, compact size and weight, high safety and reliability, and environment friendly as well. The 28V Lithium Ion Battery Pack is mainly working as 28V DC power source, and it consists of 9 cells of Lithium Iron Phosphate Battery Cells connected in series. HRESYS CES-LFP Lithium-ion Battery is widely used in Commercial energy storage system, Industrial energy storage system, Small or Medium-Sized Renewable Energy Storage System, etc.


    • Product Specification​
    ItemSpecificationRemarks
    Nominal Capacity300AhStandard discharge (1) capacity after standard charge (2)
    Nominal Voltage28.8VConfiguration: 9S2P - VHR 45173184LFP-150Ah. Voltage of single cell is 3.2V.
    Charge Voltage32.4V@ 25 ± 3℃
    Voltage at End of Discharge24.0V@ 25 ± 3℃
    Maximum Continuous Charge Current (CC Threshold)150A@ 25 ± 3℃
    Charge Voltage-cell3.80V/cellN.A.
    Maximum Continuous300A@ 25 ± 3℃
    Discharge Current
    Voltage at End of Discharge-cell2.50V/cellN.A.
    Operation AllowableCharge: 0~60°CN.A.
    Temperature RangeDischarge: -20~60°CN.A.
    Continuous Discharge Power4.32KW50%SOC
    Continuous Charge Power1.73KWN.A
    Self-discharge Rate/Month≤4%@ 25 ± 3℃,50%SOC
    Cycle Life(cycles)≥5000@ 25 ± 3℃,0.2C/0.5C @80%DOD
    Operation Allowable≤95% RHOperation
    Humidity Range≤85% RHStorage
    Recommended0~40°CMax. 6 month
    Storage temperature
    Weight73.6(±2)kgN.A.

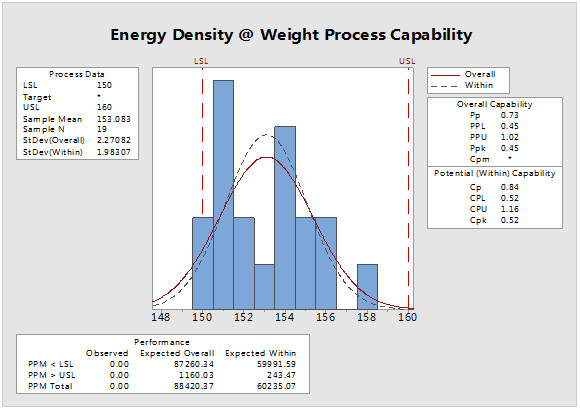

    • Energy Density @ Weight & AC IMP

    28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg


    • Discharge Performance With Varied Power @ -40℃

    28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg


    • Discharge Performance With Varied Power @ 45℃

    28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg

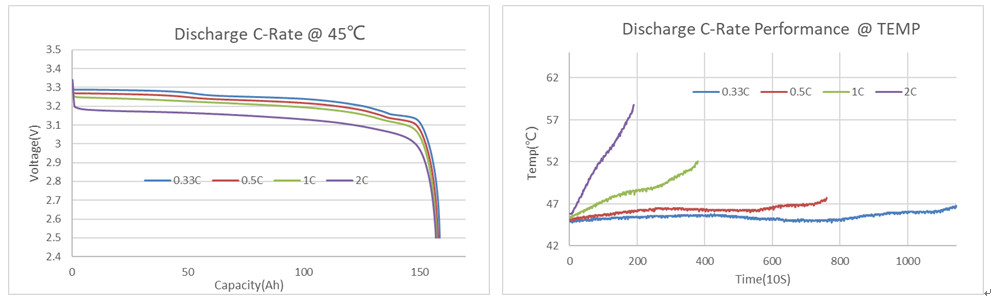

    • Discharge C-Rate Performance

    28V 300Ah LFP Lithium Ion Battery , LFP battery pack High Capacity 73.6kg


    • R&D Ability and Testing Facilities

    1. Industry Leading R&D Team

    2. Over hundreds of High Level Engineers working in Li-Ion Battery and VRLA Battery product development

    3. 60% of engineers have possessed Master/Doctor degree

    4. External Consultant/Expert supporting innovation
