Large Capacity Telecommunication Battery High Reliability Performance

    Buy cheap Large Capacity Telecommunication Battery High Reliability Performance from wholesalers

    Buy cheap Large Capacity Telecommunication Battery High Reliability Performance from wholesalers
    • Buy cheap Large Capacity Telecommunication Battery High Reliability Performance from wholesalers

    Large Capacity Telecommunication Battery High Reliability Performance

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 2DE 300
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Large Capacity Telecommunication Battery High Reliability Performance

    2V300AH Lead-acid Batteries for Telecommunications,UPS systems,IDC and other backup applications.L126mm x W187mm x H361.5mm


    • Product Overview

    HRESYS VHR 2DE 300 is long life VRLA AGM Battery.With corrosion resistance thick grid and advanced manufacturing technique,it delivers high reliability performance and long float service life up to 15 years,highly suited for Telecommunication,UPS systems,IDC and other Backup applications.


    • Features and Benefits​

    HRESYS VHR 2DE 300 is long life VRLA AGM Battery.With corrosion resistance thick grid and advanced manufacturing technique,it delivers high reliability performance and long float service life up to 15 years,highly suited for Telecommunication,UPS systems,IDC and other Backup applications.


    • Product Specification
    Nominal Voltage (V)2
    Designed floating life (25℃)15 years
    Nominal capacity(25 ℃)300AH @C10(to 1.8Vpc)
    DemensionsL126mm×W187mm×H361.5mm(TH375mm)
    Approx.Weight19.4kg(42.8lbs)
    Terminal type

    Female copper insert M8(torque:10-12N.m)


    Internal resistanceApprox.0.6mOhm(fully charged @20℃)
    Max.Charge current75A
    Max.DisCharge current(5s)1500A
    Short circuit current4000A
    Ambient TemperatureDischarge: -40~60°C
    Charge: -20~55 C
    Storage: -20~45 C
    Float Charge Voltage2.25V/cell@25℃(-3mv/℃/cell)
    Equalize charge voltage2.35V/cell@25℃(-5mv/℃/cell)
    Container MaterialABS UL ( 94-V0 optional)
    Self DischargeApprox. 2.5% per month @ 20°C

    • Applications

    o Telcommunication

    o Ups systems

    o IDC

    o Other backup applications


    • Complied standards

    o IEC 60896-21/22

    o GB/T 19638

    o IEC61427

    o JIS C8704

    o BS6290 PART4


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate


    • Battery Dimension


    • Performance Curves

    · Charge Characteristics

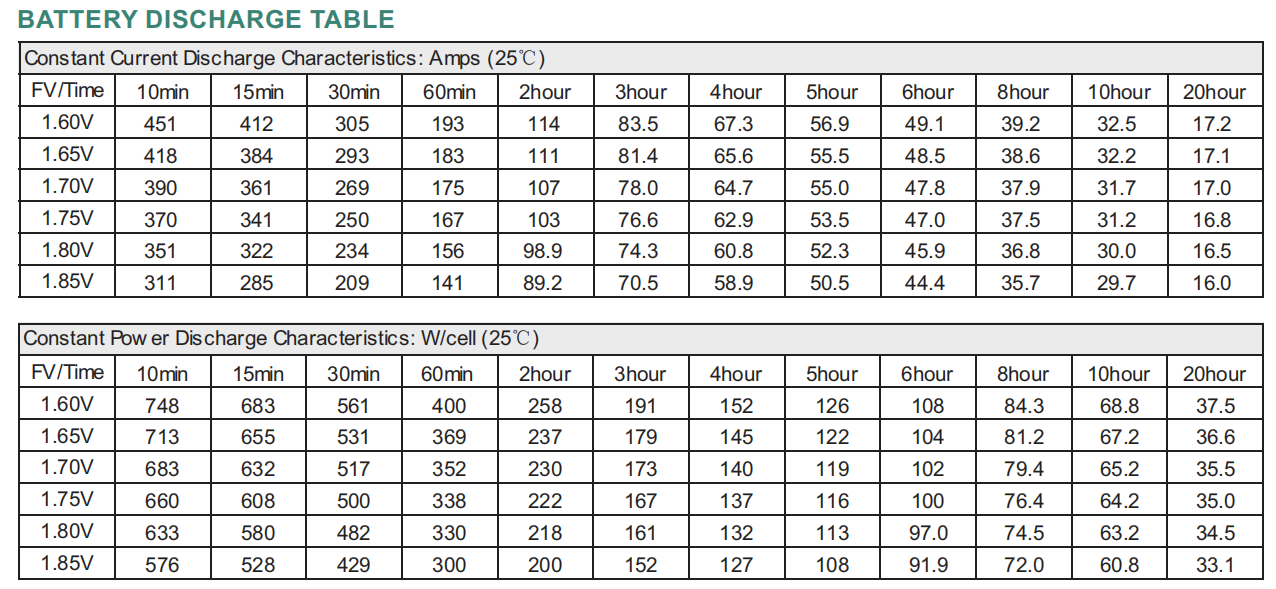

    · DisCharge Characteristics(25)



    · Temperature vs float life



    · Self-Discharge Characteristics



    · Float voltage vs float life



    · Capacity vs temperature


    · Settings Recommendation

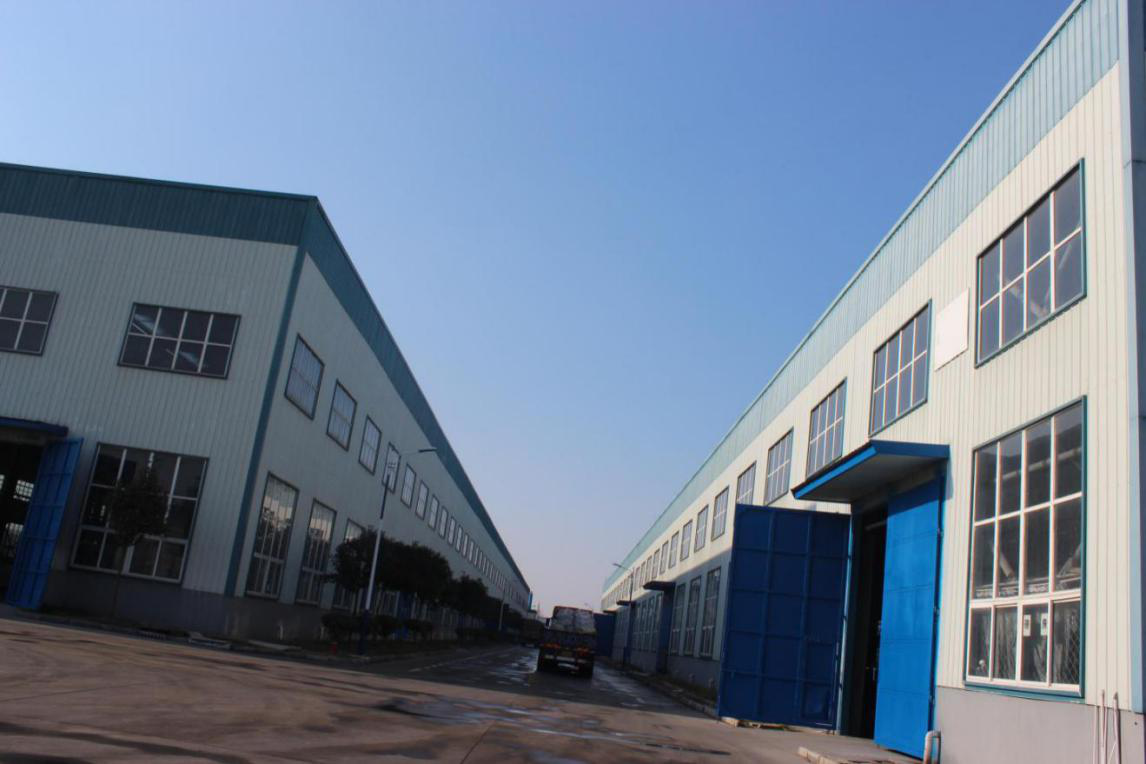

    · Factory Overview
