High Lifespan Deep Cycle Lead Acid Battery , UPS Power Battery For Security Alarm System

    Buy cheap High Lifespan Deep Cycle Lead Acid Battery , UPS Power Battery For Security Alarm System from wholesalers

    Buy cheap High Lifespan Deep Cycle Lead Acid Battery , UPS Power Battery For Security Alarm System from wholesalers
    • Buy cheap High Lifespan Deep Cycle Lead Acid Battery , UPS Power Battery For Security Alarm System from wholesalers

    High Lifespan Deep Cycle Lead Acid Battery , UPS Power Battery For Security Alarm System

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 12DT100S
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    High Lifespan Deep Cycle Lead Acid Battery , UPS Power Battery For Security Alarm System

    12V 100AH Duration Top Terminal Lead-acid Batteries for Security and alarm system, L306.5mm x W168mm x H206.5mm


    • Product Overview

    HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS

    Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.

    With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​


    • Product Specification​

    Nominal Voltage (V)12
    Nominal Capacity (25 C)100 Ah@C10 (to 1.80Vpc)
    Dimension (mm)L306.5mm x W168mm x H206.5mm
    Approx. Weight28.4 kg (62.6 lbs.)
    Terminal TypeFemale Copper Insert M6
    Internal ResistanceApprox. 0.005 Ohm (fully charged@ 20°C)
    Max. Charge Current25 A
    Self-DischargeApprox. 3% per month @ 25°C
    Ambient Temperature

    Discharge: -20~55°C

    Charge: -20~50 °C

    Storage: -20~45°C

    Float Charge Voltage13.6V/block @25℃
    Equalize Charge Voltage14.4V/block @25℃
    Container MaterialABS (UL94-V0 optional)

    • Features and Benefits​

    - Innovative horizontal plate structure

    - Overcome acid stratification issue

    - Overcome pressure loss issue

    - 3x cycle life of conventional AGM battery

    - Suit for 23" and ETSI power racks/cabinets with front terminal

    - High safety and reliability

    - 15 years design float life at 20℃

    - True front-terminal design -Not requiring any additional top space

    - Enhanced container with reinforce ribs design-Suit for hottest operating environment

    - Ideal for cycling application where unstable grid power supply or no-grid, such as Telecom BTS,hybrid genset, renewable energy storage


    • Applications

    o Outdoor telecom

    o UPS

    o IDC

    o Security and alarm system

    o Utilities

    o Emergency light systems

    o CATV


    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate

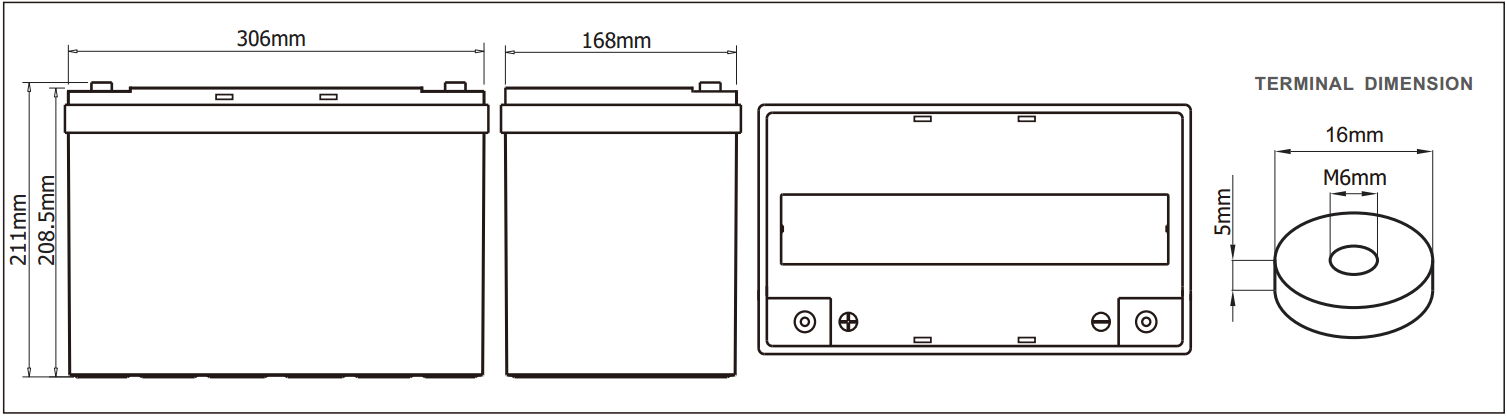

    • Battery Dimension


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 550 cycle at 80%DOD


    12 V 120 AH Superior Cycle Gel Lead-acid Batteries for Cyclic Applications with Frequent Cycles, L405mm x W174mm x H232m
