12V 80AH Duration Top Terminal Lead-acid Batteries for UPS, L266mm
x W168mm x H208mm

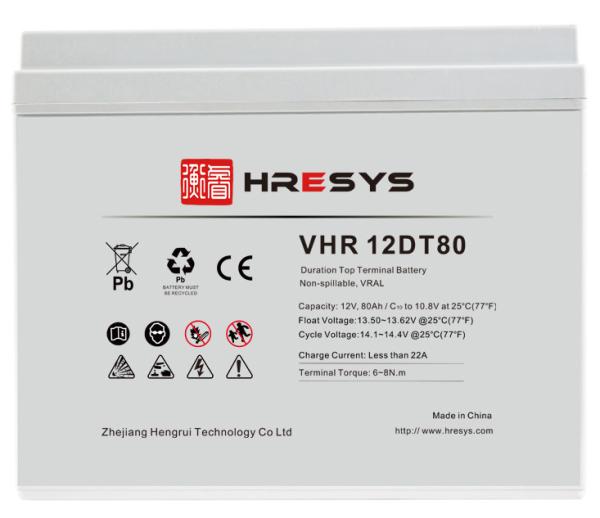

HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid
Battery is specially designed for UPS
Applications including telecom, UPS, IDC, security and alarm
system, utilities, emergency light systems, CATV and other backup
applications.
With corrosion resistance thick grid, international leading
technologies and State-of-the-art automated manufacturing, DT
series offer long cycle life, large current discharge capability,
high consistency reliability and safety, and
environmental-friendly.
| Nominal Voltage (V) | 12 |
| Nominal Capacity (25 C) | 80 Ah@C10 (to 1.80Vpc) |

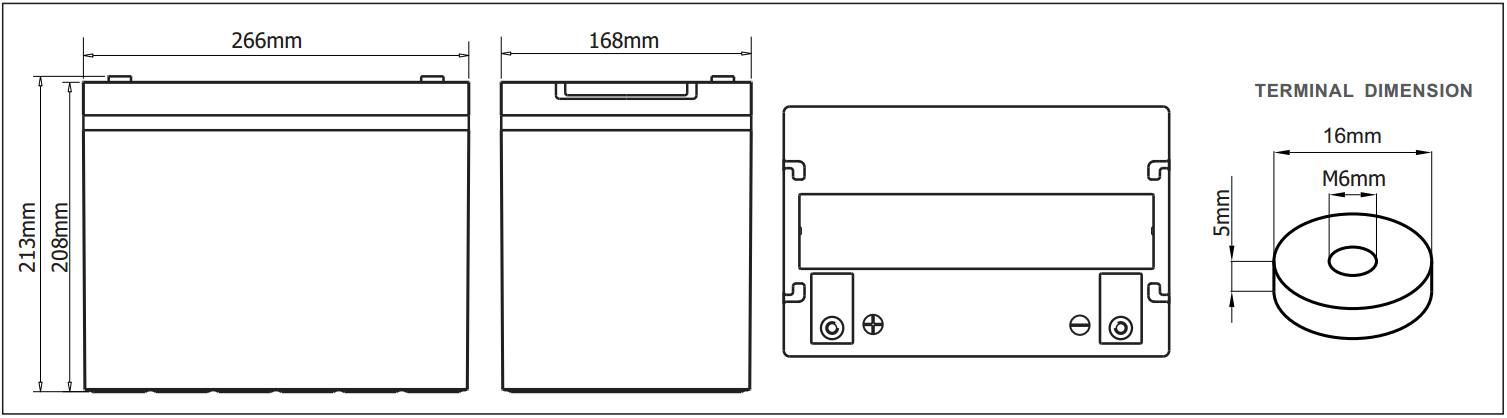

| Dimension (mm) | L266mm x W168mm x H208mm |
| Approx. Weight | 24.5 kg (54 lbs.) |
| Terminal Type | Female Copper Insert M6 |
| Internal Resistance | Approx. 0.006 Ohm (fully charged@ 20°C) |
| Max. Charge Current | 20 A |
| Self-Discharge | Approx. 3% per month @ 25°C |
| Ambient Temperature | Discharge: -20~55°C Charge: -20~50 °C Storage: -20~45°C |
| Float Charge Voltage | 13.6V/block @25℃ |
| Equalize Charge Voltage | 14.4V/block @25℃ |
| Container Material | ABS (UL94-V0 optional) |
Batterylid,container
- Made of reinforce ABS plastic with sufficient strength and acid
- resistance ability, to prevent leakage of electrolyte and gas
Terminal
- With tin-coated red copper insert to reduce internal resistance,
and with good conductivity
AGM separator
- With high oxygenation-resistance and heat-proof ability, and
electrolyte can be well absorbed and
retained in the separator
Positive and negative plate
- Made of special formula Pb-Ca alloy and active material
Valve
- Made of acid-proof, aging-proof synthetic rubber
Flamearrestor
- with acid-proof, explosive-proof functions.
o Outdoor telecom
o UPS
o IDC
o Security and alarm system
o Utilities
o Emergency light systems
o CATV
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
· Cyclic Characteristics
High cycle performance: up to 550 cycle at 80%DOD
