OPZV12-60 12V Tubular Gel Batteryfor Renewable Energy System ,
L260mm x W170mm x H210mm
HRESYS OPzV12-60 With the rubust die cast positive tubular plate
design and fumed gelled electrolyte, OPzV 12V series is ideal for
use in renewable energy system, telecom and other cyclic/standby
harsh environment applications. OPzV 12V series offers excellent
deep cycling life and high level reliability with 12 years design
life.
OPzV series offer large current discharge capability , long cycle
life ,high consistency.
reliability and safety, and environmental-friendly.
- Tubular positive plate and Fumed Silica gel gel electrolyte with
prolonged cycle life
low density electrolyte with fast charging
- large current discharge capability ,
- Lead Calcium die cast grid with improved corrosion resistance
capability
- Excellent deep discharge recovery capability
- Reliable maintenance-free and leakage-free construction
- Wide operating temperature range from -40°C to 60°C
- Low self-discharge rate and long shelf life (1 year at 25°C)
o Home & Mini Energy Storage System
o Microgrid / Off-grid Power System
o Solar Street Lights
o Emergency Power Supply
o Telecommunication
o Uninterrupted Power Supply (UPS)
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Nominal Capacity (25 C) | 60 Ah@10HR-rate (to 1.80Vpc) |

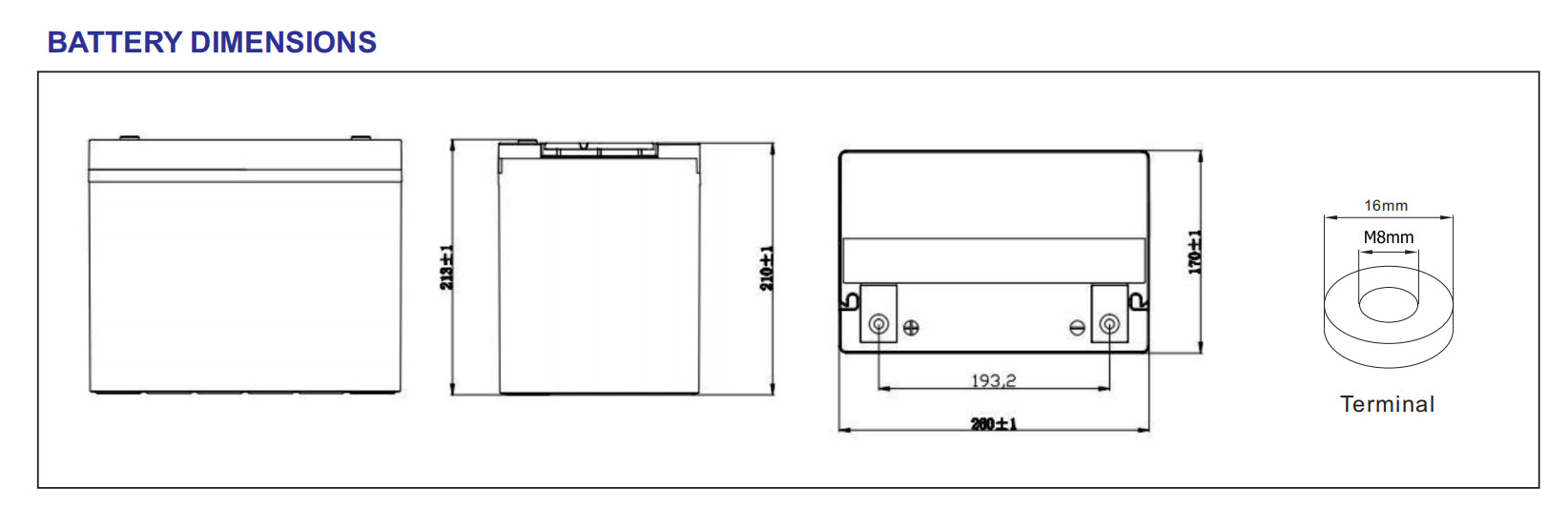

| Dimension (mm) | L260mm x W170mm x H210mm |
| Approx. Weight | 21.5 kg (47.4 lbs) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0093 Ohm (fully charged) |
| Self Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -20~55°C
Charge: -20~45 C
Storage: -20~45 C |
| Float Charge Voltage | 13.3 to 13.5V/block @25 C (-3mV/ cell/ C) |
| Cycle Use Charge Voltage | 14.1 to 14.4V/block @25 oC |
| Container Material | ABS UL ( 94-V0 optional) |
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
High cycle performance: up to 1000 cycle at 80%DOD
1) Cycle method: Total discharge is 80% DOD at customer practice
condition, charge with constant current and constant voltage
(CC-CV) mode, charge time shall be 10 - 12 hours at least. This is
one cycle.
