370W High Power 12v AGM Battery , Data Center UPS Systems Long Cycle Life

    Buy cheap 370W High Power 12v AGM Battery , Data Center UPS Systems Long Cycle Life from wholesalers

    Buy cheap 370W High Power 12v AGM Battery , Data Center UPS Systems Long Cycle Life from wholesalers
    • Buy cheap 370W High Power 12v AGM Battery , Data Center UPS Systems Long Cycle Life from wholesalers

    370W High Power 12v AGM Battery , Data Center UPS Systems Long Cycle Life

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : VHR 12HP370W
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    370W High Power 12v AGM Battery , Data Center UPS Systems Long Cycle Life

    12 V 370W High Power AGM Batteries for UPS,L306 x W169 x H208 x TH213

    • Product Overview

    HRESYS HP (High Power) Series AGM Battery is specially designed for high rate discharge applications including IDC, EPS/UPS and other devices.

    With international leading technologies and State-of-the-art automated

    manufacturing, HP series offer stable performance during high current discharge.

    reliability and safety, and environmental-friendly. ​


    • Features and Benefits​

    - 30% increased power output at 15 minutes back up time

    - Optimized plate achieve low internal resistance

    - Long Cycle Life:Exceptional cyclic performance above 550 cycles @ 80% DoD

    - Flame retardant UL94 V-0 ABS case

    - 12 years design floating life at 20°C(68F)

    - Wide operating temperature range from -20°C to 55°C

    - Excellent deep discharge recovery capability

    - Low self-discharge rate and high reliability


    • Applications
    • EPS
    • Emergency lighting
    • UPS
    • IDC

    Complied standards

    • IEC 60896-21/22
    • GB/T19638
    • Eurobat guide, long life
    • JIS C8704
    • BS6290 part 4

    Management and Product Certificates

    • ISO9001:2015
    • ISO14001:2015
    • OHSAS18001:2007
    • CE Certificate


    • Product Specification​
    Nominal Voltage (V)12 (6 cells per unit)
    Power (25 C)370W/cell,15min to 1.67V
    Dimension (mm)L306 x W169 x H208 x TH213
    Approx. Weight30kg (66.1 lbs)
    Terminal TypeFemale Copper Insert M8 (torque:10~12N.m)
    Internal Resistance≤ 0.0055 Ohm (fully charged)
    Max. Charge Current25A
    Max. Discharge Current900 A
    Short Circuit Current2600 A
    Ambient TemperatureDischarge: -20~55°C
    Charge: -20~50°C
    Storage: -20~45°C
    Float Charge Voltage13.5/block @25℃(-3mV/cell/°C)
    Cycle Use Charge Voltage14.1/block @25℃
    Container MaterialABS (UL94 F-V0)

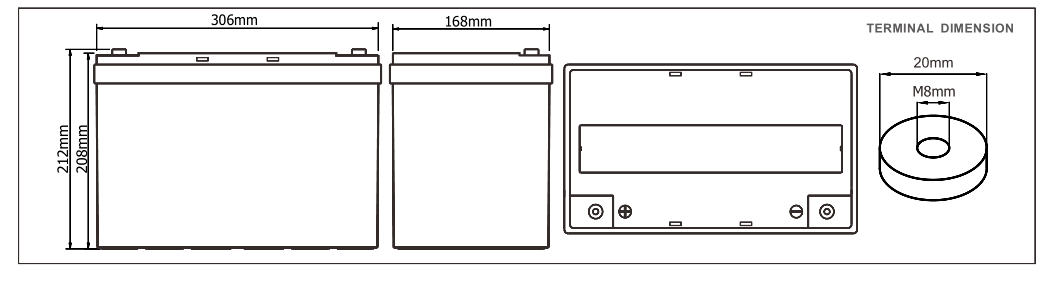

    • Battery Dimension

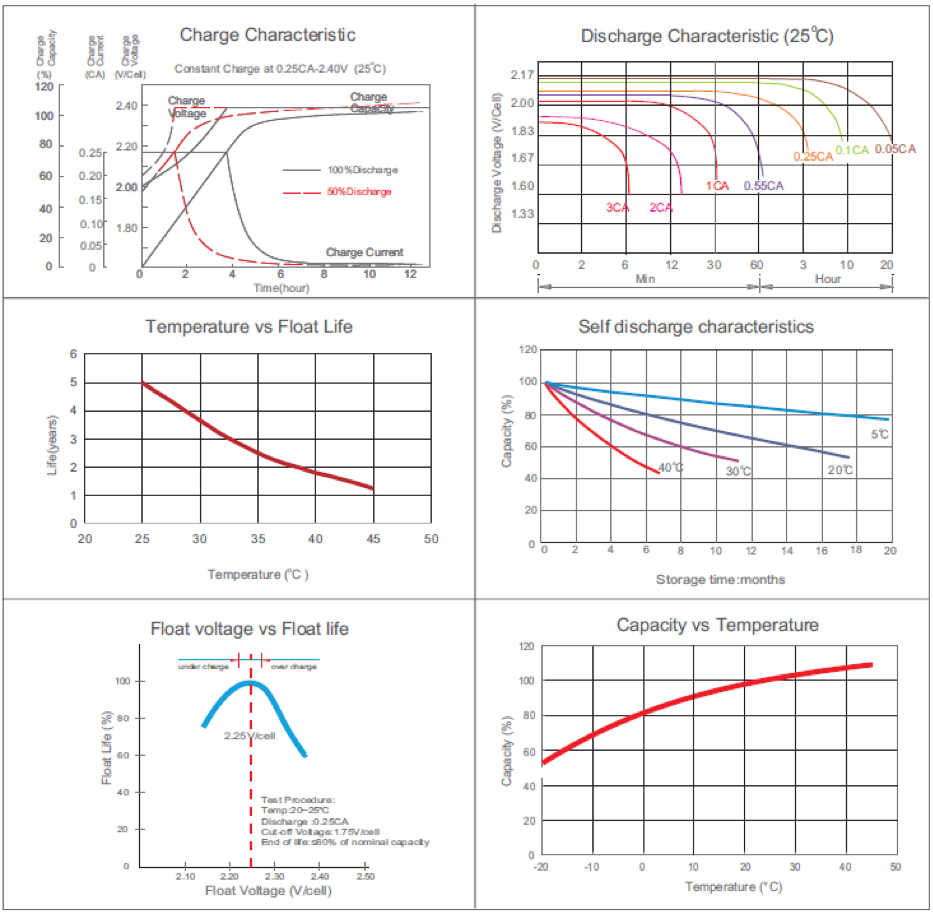

    • Performance Curves

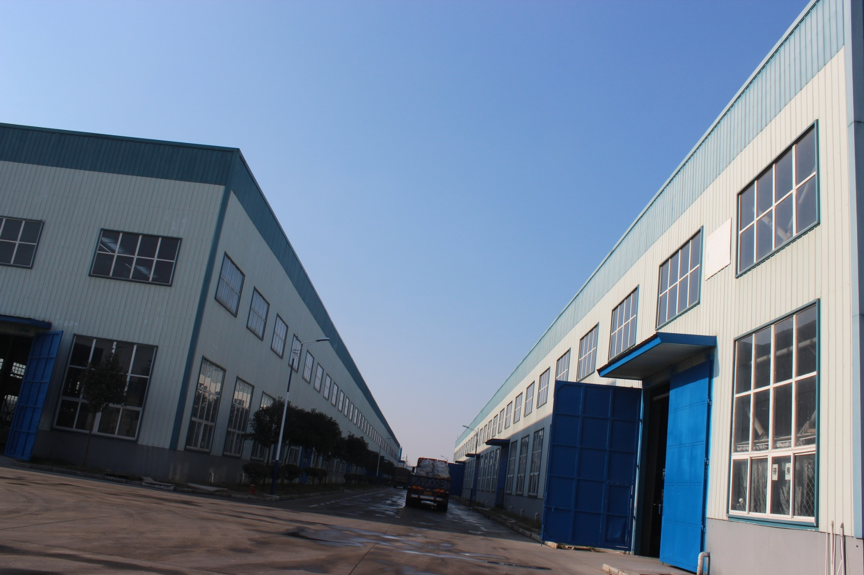

    • Factory Overview
