    2V 3000AH Data Center Battery Backup System L695mm X W338mm X H335mm

    2V 3000AH Gel Lead-acid Battery for Energy Storage, L695mm x W338mm x H335mm


    • Product Overview

    HRESYS HP (High Power) Series AGM Battery is specially designed for high rate discharge applications including IDC, EPS/UPS and other devices.With international leading technologies and State-of-the-art automated manufacturing, HP series offer stable performance during high current discharge.reliability and safety, and environmental-friendly. ​


    • Product Specification​

    Nominal Voltage (V)2
    Nominal Capacity (25 C)3000 Ah@C10 (to 1.80Vpc)
    Dimension (mm)L695mm x W338mm x H335mm
    Approx. Weight174.5 kg (384.7 lbs.)
    Terminal TypeFemale Copper Insert M8
    Internal ResistanceApprox. 0.11mOhm (fully charged@ 20°C)
    Max. Charge Current750 A
    Self-DischargeApprox. 2.5% per month @ 20°C
    Ambient Temperature

    Discharge: -40~60°C

    Charge: -20~55 °C

    Storage: -20~45°C

    Float Charge Voltage2.25V/cell @25℃
    Equalize Charge Voltage2.35V/cell @25℃
    Container MaterialABS (UL94-V0 optional)

    • Features and Benefits​

    - Long Cycle Life: 15 years long life design @ 25℃

    - Multi-purpose Application: The battery can be floating application as well as cyclic application

    - Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

    - High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable

    - Optimized plate achieve low internal resistance

    - Flame retardant UL94 V-0 ABS case

    - 12 years design floating life at 20°C(68F)

    - Wide operating temperature range from -20°C to 55°C

    - Excellent deep discharge recovery capability

    - Low self-discharge rate and high reliability


    • Applications

    o Renewable energy

    o Outdoor telecom

    o Mini Solar Power System


    • Complied standards

    o IEC 6 - 1056-1

    o GB/T 22199

    o GB/T 19639-1

    o JIS C870 - 2 1


    • Management and Product Certificates

    o ISO9001:2015

    o ISO14001:2015

    o OHSAS18001:2007

    o CE Certificate

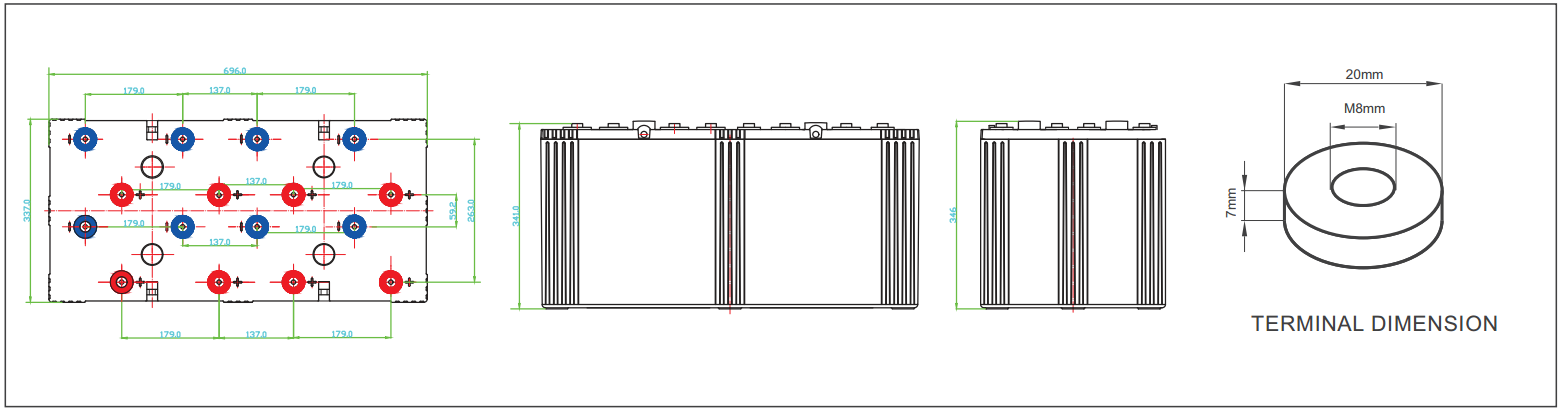

    • Battery Dimension


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 820 cycle at 80%DOD


    12 V 120 AH Superior Cycle Gel Lead-acid Batteries for Cyclic Applications with Frequent Cycles, L405mm x W174mm x H232m
