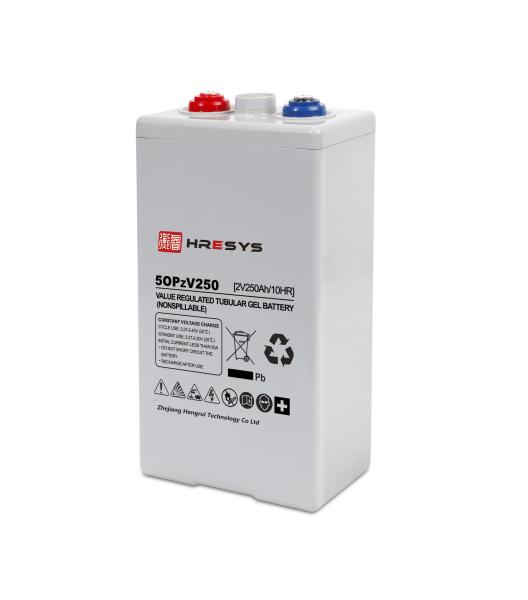

    20.7 Kg Battery Energy Storage System 250 Ah L124mm X W206mm X H390mm

    2 V 250AH OPzV Tubular Gel Battery for renewable energy, telecom and other cyclic and standby harsh environment applica


    • Product Overview

    HRESYS OPzV Series is traditional Valve Regulated Tubular Gel type Battery. By using tubular positive plate and fumed silica Gel electrolyte to provide excellent deep cyclic performance, fast recovery performance and high reliability. OPzV Series is specially designed for cyclic applications at harsh working conditions, such as telecom cyclic

    Using, power utilities, renewable energy storage, etc


    • Features and Benefits

    - 20 years design life at floating condition

    - Tubular positive plate and fumed silica gel enables excellent deep cycle performance

    - Low density electrolyte reduce corrosion and enable long service life

    - Excellent deep discharge recovery capability

    - Reliable maintenance-free and leakage-free construction

    - Wide operating temperature range from -40°C to 60°C

    - Low self-discharge rate and long shelf life(1 year at 25°C)

    - Din standard compliance


    • Applications

    o Renewable energy

    o Telecom

    o UPS

    o Utility


    • Complied standards
      • IEC 60896-21/22
      • DIN40472
      • IEC61427
      • YD/T1360
      • Eurobat guide, long life
      • BS6290 part 4

    • Management and Product Certificates
      • ISO9001:2015
      • ISO14001:2015
      • OHSAS18001:2007
      • CE Certificate

    • Product Specification​
    Nominal Voltage (V)2
    Designed floating life(25°C)20+ Years
    Nominal Capacity (25°C)250 Ah @ C10 (to 1.80Vpc)
    Max. Charge Current62.5 A
    Max. Discharge Current1000 A
    Short Circuit current2300 A
    Dimension (mm)L124mm x W206mm x H390mm
    Approx. Weight20.7 kg (45.6 lbs)
    Terminal TypeFemale Copper Insert M8(torque: 10~12N.m)
    Internal ResistanceApprox. 0.80 Ohm (fully charged)
    Float Charge Voltage2.23V/block @25℃
    Equalize Charge Voltage2.35V @25℃
    Self-DischargeApprox. 2.0% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -30~55 C
    Storage: -25~45 C
    Container MaterialABS UL (94-V0 optional)

    • Battery Dimension
      • High cycle performance: up to 400 ~ 600 cycle at 100%DOD


    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 1800 cycle at 800%DOD


    · Charge Characteristics
