800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage

    Buy cheap 800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage from wholesalers

    Buy cheap 800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage from wholesalers
    • Buy cheap 800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage from wholesalers

    800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage

    Ask Lasest Price
    Brand Name : HRESYS
    Model Number : 8 OPzV 800
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1800000 PCS/YEAR
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

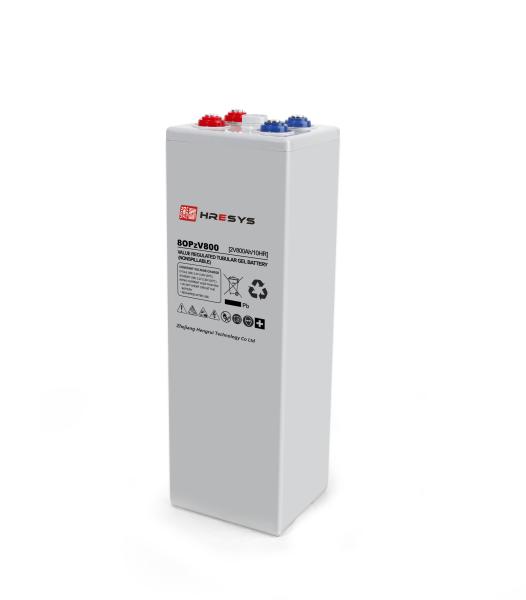

    800AH Rechargeable Energy Storage System , Deep Cycle Battery For Solar Storage

    2V 800AH High reliable & Deep Cycling Life Tubular Gel Type OPzV Battery for renewable energy storage, Telecom use


    • Product Overview

    With specially designed robust die cast positive tubular plate and fumed gelled electrolyte. HRESYS OPzV Series fit perfectly in telecom power utilities, cyclic using, renewable energy storage applications at harsh working conditions.

    HRESYS OPzV Series offers extremely strong performance, such as long design-life, maintenance free and high-level reliability etc. HRESYS OPzV series compliance with the DIN standard, IEC standard, Eurobat guide etc.


    • Features and Benefits

    - Low density electrolyte reduce corrosion and enable long service life

    - Reliable maintenance-free and leakage-free construction

    - Excellent deep discharge recovery capability

    - Wide operating temperature range from -40°C to 60°C

    - Tubular positive plate and fumed silica gel enables excellent deep cycle performance

    - Compliance with Din standard

    - Low self-discharge rate and long shelf life (1 year at 25°C)

    - 20 years design life at floating condition


    • Applications

    o Renewable energy

    o Telecom

    o UPS

    o Utility


    • Complied standards
      • IEC 60896-21/22
      • DIN40472
      • IEC61427
      • YD/T1360
      • Eurobat guide, long life
      • BS6290 part 4

    • Management and Product Certificates
      • ISO9001:2015
      • ISO14001:2015
      • OHSAS18001:2007
      • CE Certificate

    • Product Specification​
    Nominal Voltage (V)2
    Designed floating life(25°C)20+ Years
    Nominal Capacity (25°C)800 Ah @ C10 (to 1.80Vpc)
    Max. Charge Current200 A
    Max. Discharge Current2000 A
    Short Circuit current5300 A
    Dimension (mm)L191mm x W210mm x H681mm
    Approx. Weight60 kg (132.2 lbs)
    Terminal TypeFemale Copper Insert M8(torque: 10~12N.m)
    Internal ResistanceApprox. 0.32 Ohm (fully charged)
    Float Charge Voltage2.23V/block @25℃
    Equalize Charge Voltage2.35V @25℃
    Self-DischargeApprox. 2.0% per month @ 20°C
    Ambient TemperatureDischarge: -40~60°C
    Charge: -30~55 C
    Storage: -25~45 C
    Container MaterialABS UL (94-V0 optional)

    • Battery Dimension
      • L191mm x W210mm x H681mm

    • Performance Curves

    · Cyclic Characteristics

    High cycle performance: up to 1800 cycle at 800%DOD


    · Charge Characteristics
