- 6V 200 AH Innovation Cyclic Front Access Battery, L366mm x W125mm x
H250mm
The CF series is high cycle front terminal VRLA battery in both
cycle and float
applications even in hottest and harstest environment. By combining
innovational
horizontal plate design with up-to-date technology, the CF series
delivery AGM
extra high cycle and long float life perforance. True front access
connection and
centralized venting system of CF series for fast, safety
installation and maintenance
• Innovative horizontal plate structure
- Overcome acid stratification issue
- Overcome pressure loss issue
- 3x cycle life of conventional AGM battery
• Suit for 23" and ETSI power racks/cabinets with front terminal
• High safety and reliability
• 15 years design float life at 20℃
• True front-terminal design -Not requiring any additional top
space
• Enhanced container with reinforce ribs design-Suit for hottest
operating environment
• Ideal for cycling application where unstable grid power supply or
no-grid, such as Telecom BTS
, hybrid genset, renewable energy storage
- Main feature-3D plate design
Unstable-grid or off-grid site application --- require cycle, high
temperature, fast charge performance
Southeast Asia, South Asia and Africa site
Generator-battery Hybrid system
Replace flat plate gel battery, normal AGM battery
Harsh conditions UPS application---cycle performance
Southeast Asia, South Asia, Africa and other regions
Main backup time ＞30min
Energy Storage System --- cycle (high temperature)
Home energy system • Solar street lamps
AGV(Automated Guided Vehicle)---cycle performance
Automated Guided Vehicle, daily deep cycle application, 24~48V
system
| Nominal Voltage (V) | 6 (3 cells per unit) |
| Designed Floating Life (20 C) | 15 Years |
| Nominal Capacity (25 C) | 200 Ah @ 10HR-rate (to 1.80Vpc) |
| Dimension (mm) | L366mm x W125mm x H250mm |
| Approx. Weight | 33.7 kg (74.1 lbs) |
| Terminal Type | Female Copper Insert M8 (torque:10~12N.m) |
| Internal Resistance | Approx. 0.0017 Ohm (fully charged) |
| Max. Charge Current | 50A |
| Max. Discharge Current (5S) | 1200 A |
| Short Circuit Current | 5600 A |

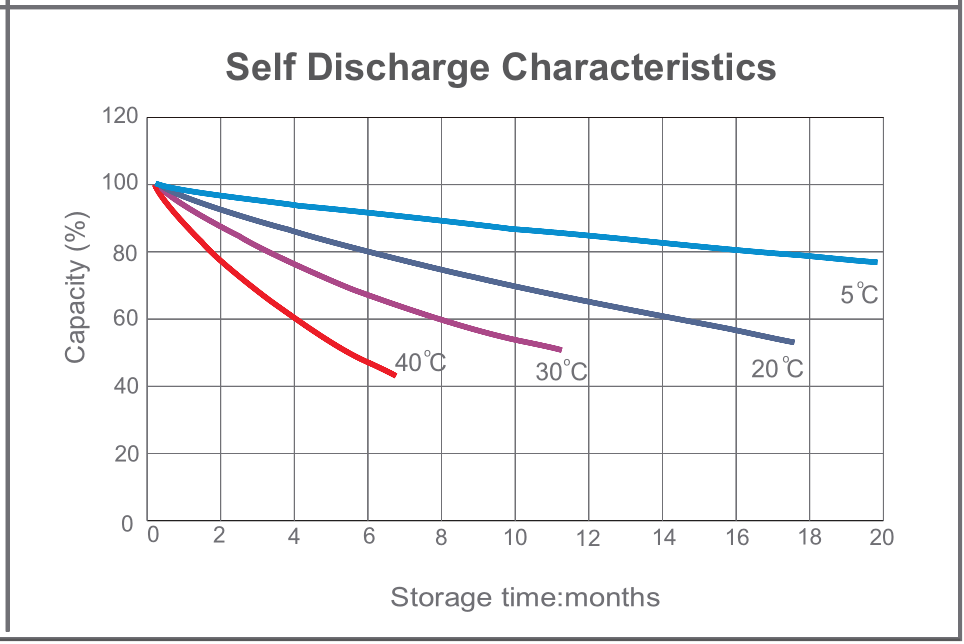

| Self Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -20~60°C Charge: -20~55C Storage: -20~45C |
| Float Charge Voltage | 6.81 V/block @25℃(-3mV/ cell/ C) |
| Equalize and Сycle Use Charge Voltage | 7.2V/block @25℃ |
| Container Material | ABS UL ( 94-V0 optional) |
